- Electric winch 12V
- Line Pull 2041kg
- Synthetic Rope
- Handlebar rockerswitch
- Handheld remote with cord
Superwinch Terra 45 | 12V | 2041kg | Synthetic Rope | 1145270
€ 605,00 incl. vat
In stock
In stock
Description

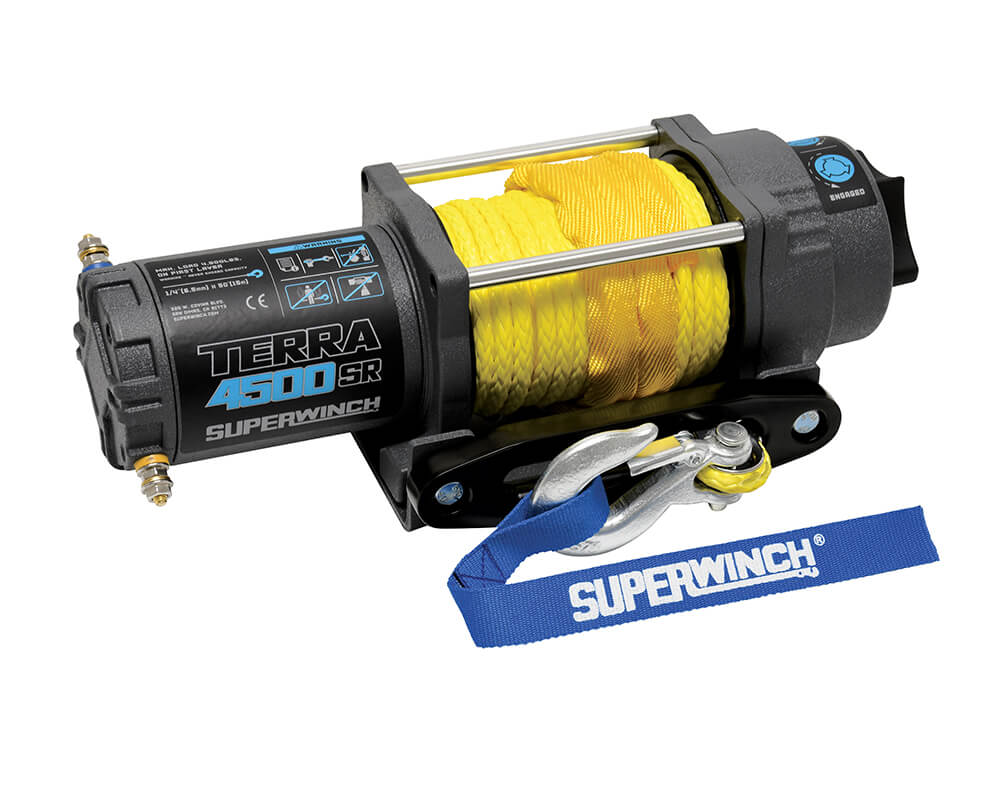

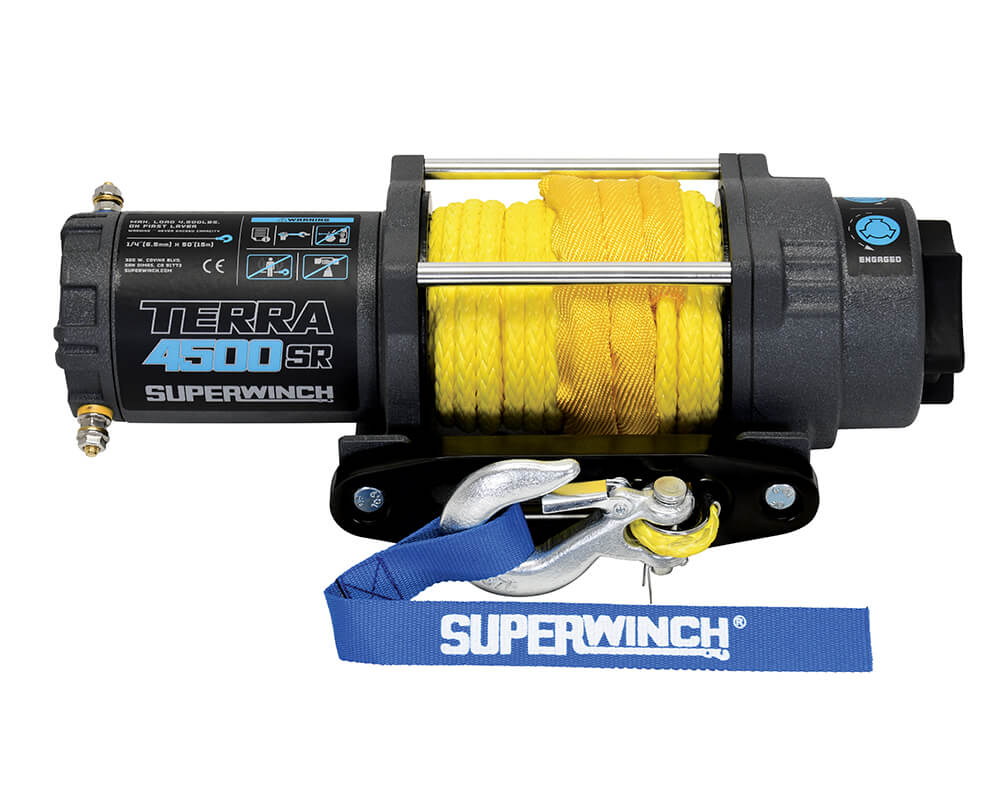

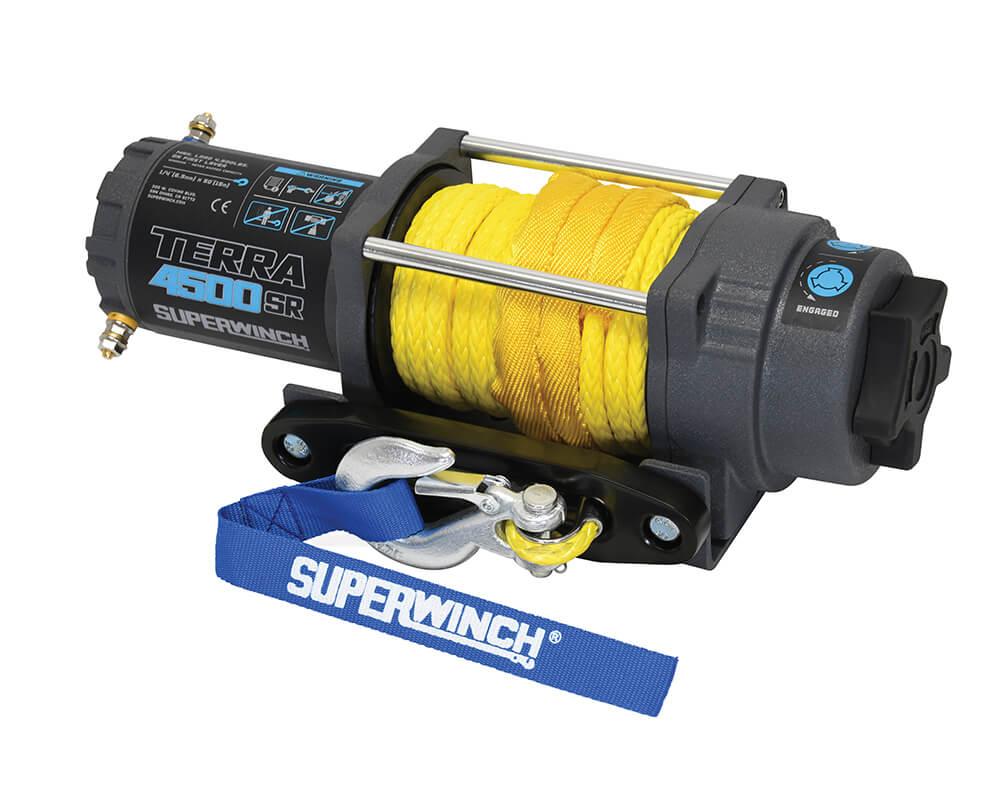

Superwinch Terra 45
“Designed for the rugged demands of ATV and UTV enthusiasts”
The Superwinch Terra is the ultimate performer among ATV and UTV winches. And let’s be honest — it doesn’t shy away from pulling a small trailer either. This powerhouse comes equipped with a high-torque motor, a reinforced drum, and your choice of a durable steel cable or synthetic rope.
The result? More pulling power, less amp draw, and faster line speeds. Available in 2500, 3500, and 4500 lbs — pick your muscle!
The latest generation of Terra winches has been completely redesigned to handle anything from mud pits to steep trails and sandy climbs. Improved inside and out, with all-steel gears, a heavy-duty steel drum, and a powerful motor built for pure reliability.

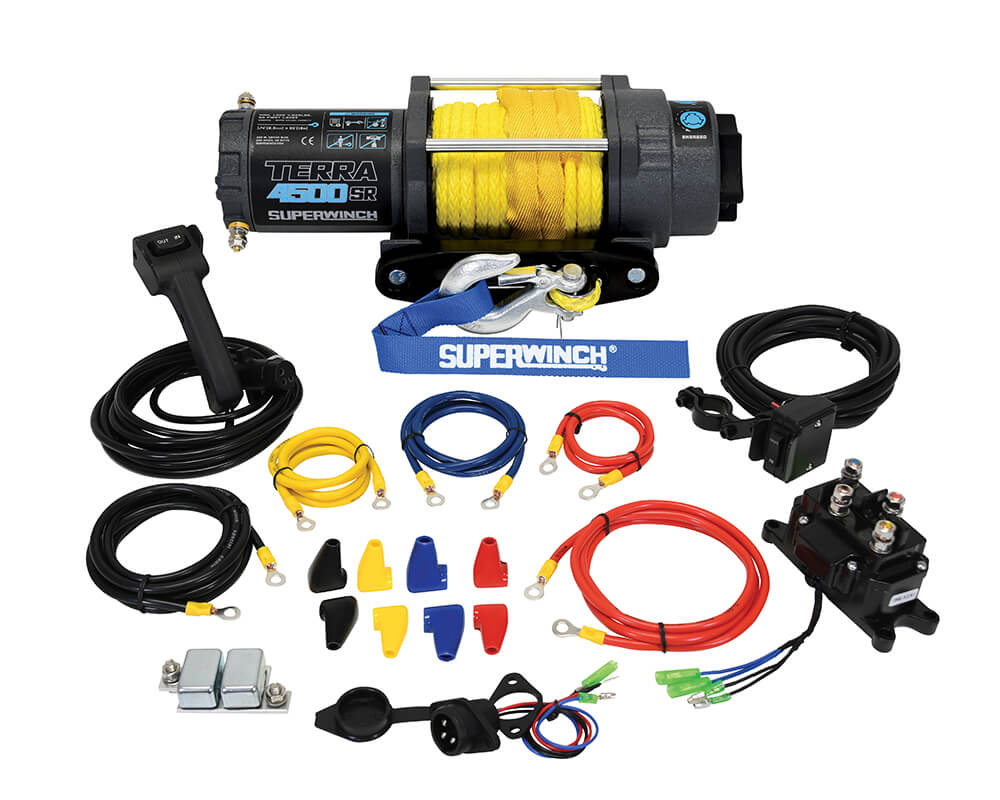

Each winch features a remotely mountable control box, a sealed solenoid, and a circuit breaker to ensure smooth and safe operation. The free-spool function is easy to use with its ergonomic knob — no fuss, just function. Plus, you get both a wired remote and a handlebar switch, so you’re always in full control.
And of course, with its IP67 rating, the Terra isn’t afraid of a little water or dust. In short — the Superwinch Terra is always ready for action.
| Specifications | Terra 25 | Terra 35 | Terra 45 |
|---|---|---|---|
| Part number | Superwinch 1125270 | Superwinch 1135270 | Superwinch 1145270 |
| Rated Line Pull | 1134kg | 1588kg | 2041kg |
| Motor | 12V DC | 12V DC | 12V DC |
| Gear | 3-Stage Planetary | 3-Stage Planetary | 3-Stage Planetary |
| Brake | Mechanical | Mechanical | Mechanical |
| Remote | Handlebar switch and wired remote (wireless optional) | Handlebar switch and wired remote (wireless optional) | Handlebar switch and wired remote (wireless optional) |
| Synthetic Rope | ø4.8mm x 12.2m | ø5.6mm x 9.8m | ø6.0mm x 15.2m |
| Fairlead | Hawse (⊗123.7mm) | Hawse (⊗123.7mm) | Hawse (⊗167.4mm) |
| Measurements LxWxH | 324mm x 114mm x 116mm | 324mm x 114mm x 116mm | 366mm x 114mm x 116mm |
| Bolt pattern LxW | 123.7mm x 76.2mm | 123.7mm x 76.2mm | 167.4mm x 76.2mm |
| Weight | 6.8kg | 8kg | 9kg |
| Line speed No load/Load | 7.5MPM / 2.1MPM | 4.9MPM / 1.8MPM | 4.9MPM / 1.2MPM |
| Amp No load/Load | 15AMP / 175AMP | 15AMP / 150AMP | 17AMP / 210AMP |
| Specifications |
| Part number |
| Superwinch 1145270 |
| Rated Line Pull |
| 2041kg |
| Motor |
| 12v DC |
| Gear |
| 3-Stage Planetary |
| Brake |
| Mechanical |
| Remote |
| Handlebar switch and wired remote (wireless optional) |
| Synthetic rope |
| ø6.0mm x 15.2m |
| Fairlead |
| Hawse (⊗167.4mm) |
| Measurements LxWxH |
| 366mm x 114mm x 116mm |
| Bolt pattern LxW |
| 167.4mm x 76.2mm |
| Weight |
| 9kg |
| Line speed No load/Load |
| 4.9MPM / 1.2MPM |
| Amps No load/Load |
| 17AMP / 210AMP |
Additional information
| Weight | 10 kg |
|---|---|
| Selecteer... | Electric |
| Selecteer... | 2000 – 3000kg |
| Selecteer... | Terra |
| Lierlijn | Synthetic Rope |
| Product type | Winches |
| Selecteer... | Pulling winch |
| Selecteer... | 12V |
| Selecteer... | ATV, Water Sports |
