- Often used as Offroad winch and (boat) trailer winch
- Wireless control can be ordered
- Features a black finish
- Heat resistant first layer
- Also available the Superwinch Tiger Shark with synthetic rope

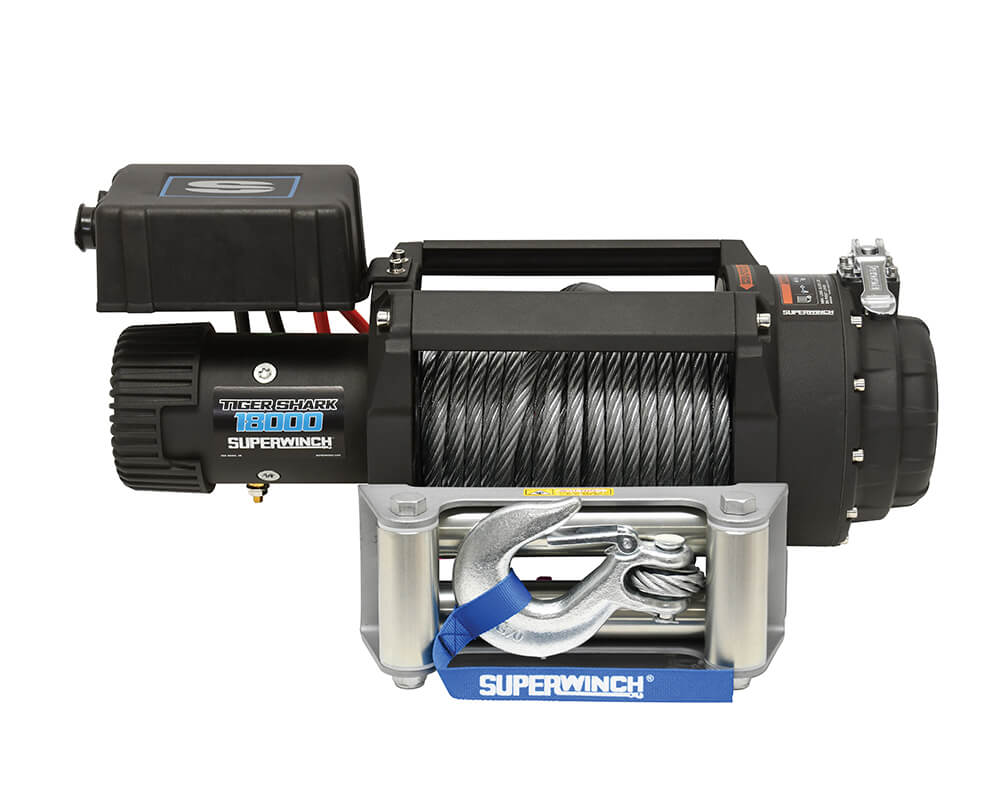

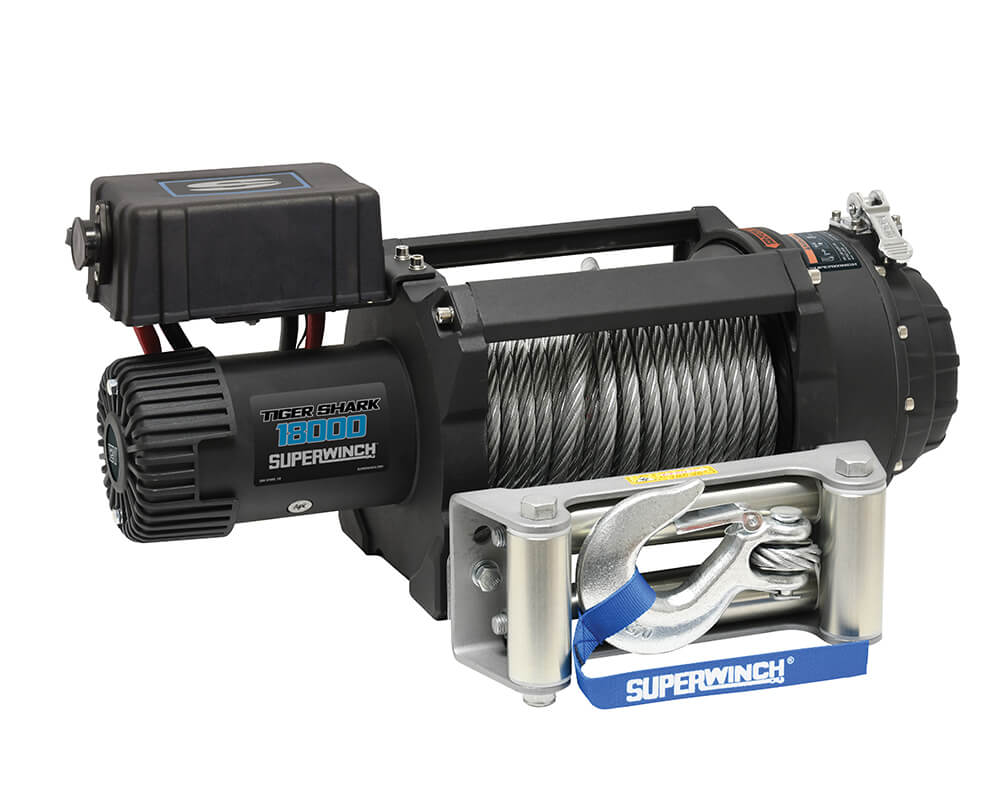

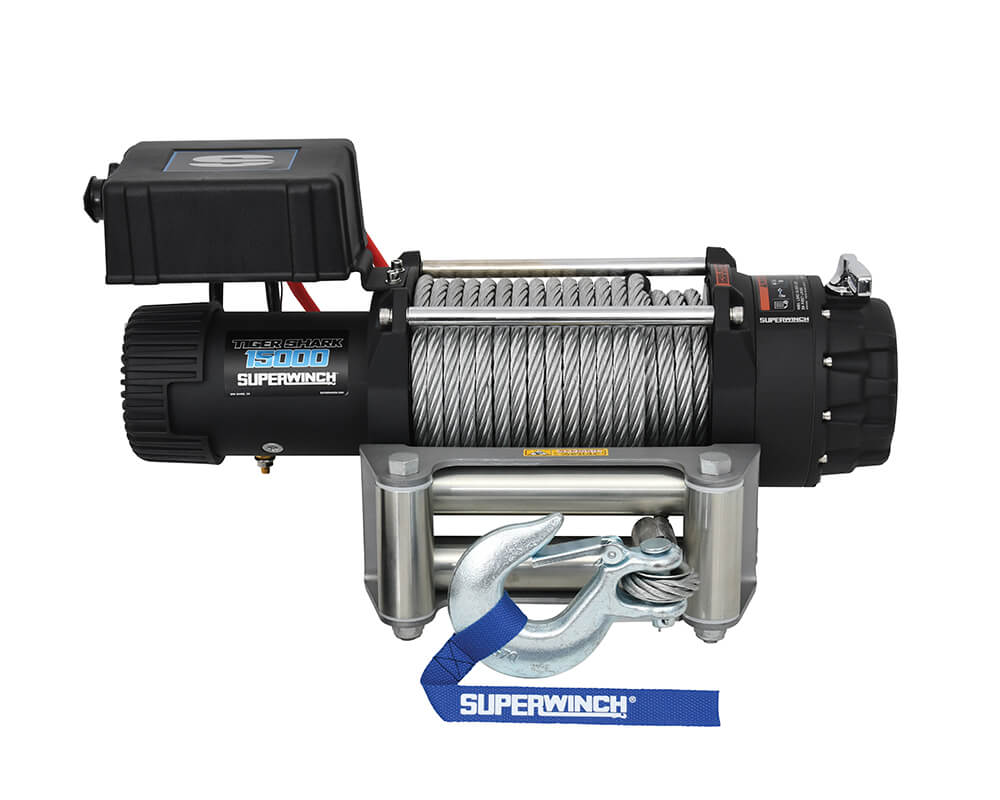

Superwinch Tiger Shark – Wire cable
Price range: € 742,94 through € 1.609,30 incl. vat
In stock
Description

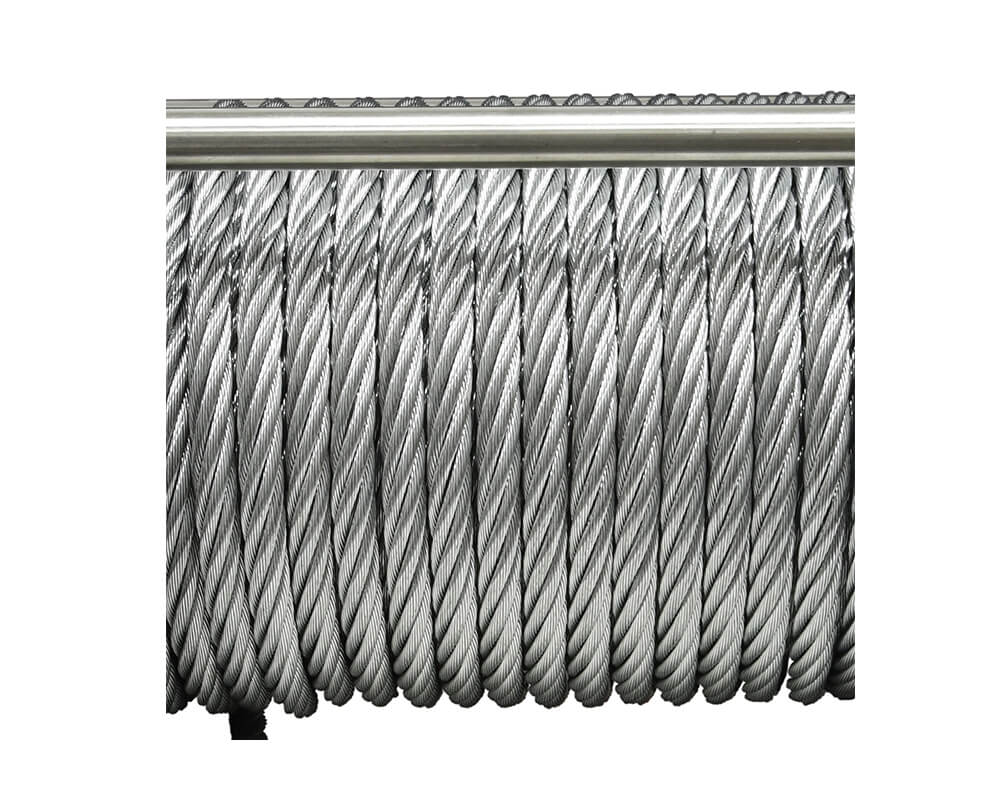

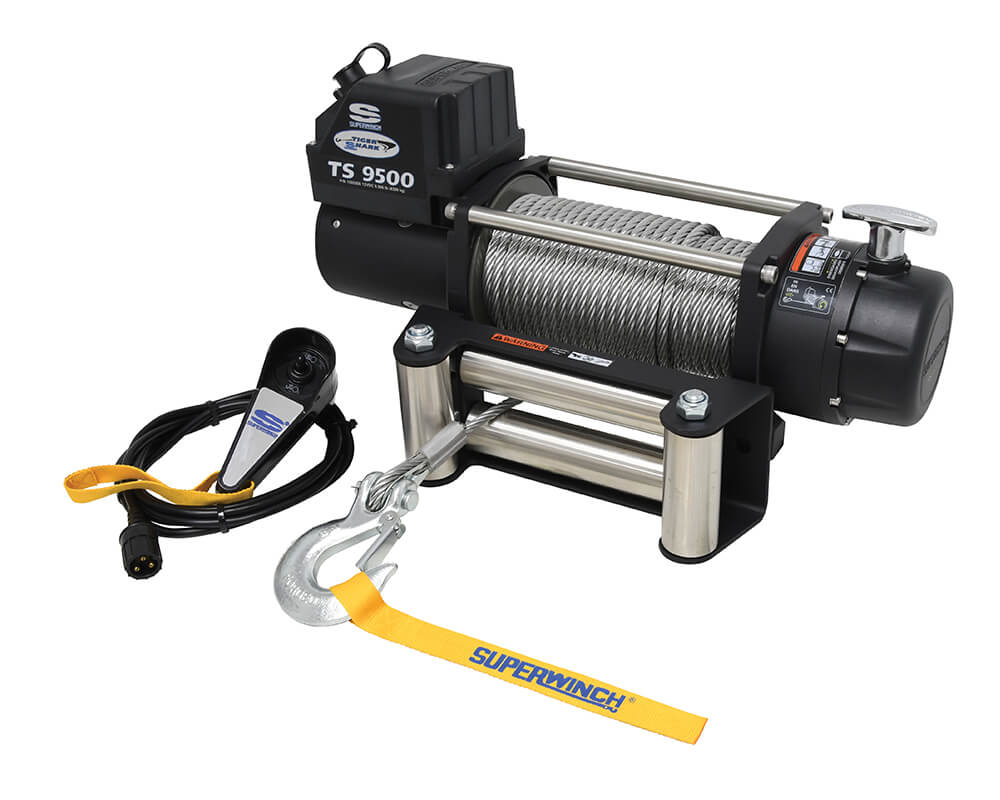

Superwinch Tiger Shark – Steel Cable
“Reliable and heavy-duty performance”
The Superwinch Tiger Shark series is an excellent solution for efficient and reliable winching with heavier loads. Designed to meet a wide range of demands, this Superwinch winch is highly dependable and easy to use in situations that require additional pulling power. Therefore, it is particularly suitable as an Offroad winch and trailer winch.
This electric winch is one of Superwinch’s most popular models, equipped with powerful motors, strong gears, and durable stainless steel components. It’s easy to understand why the Tiger Shark remains the most popular Superwinch winch year after year.

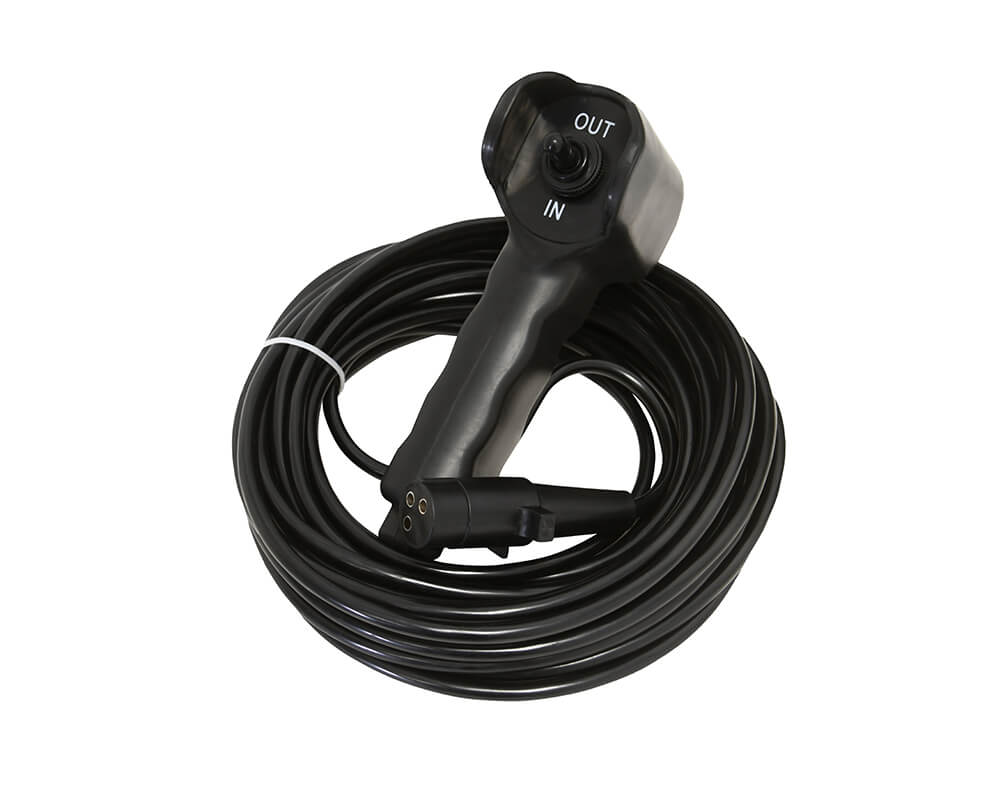

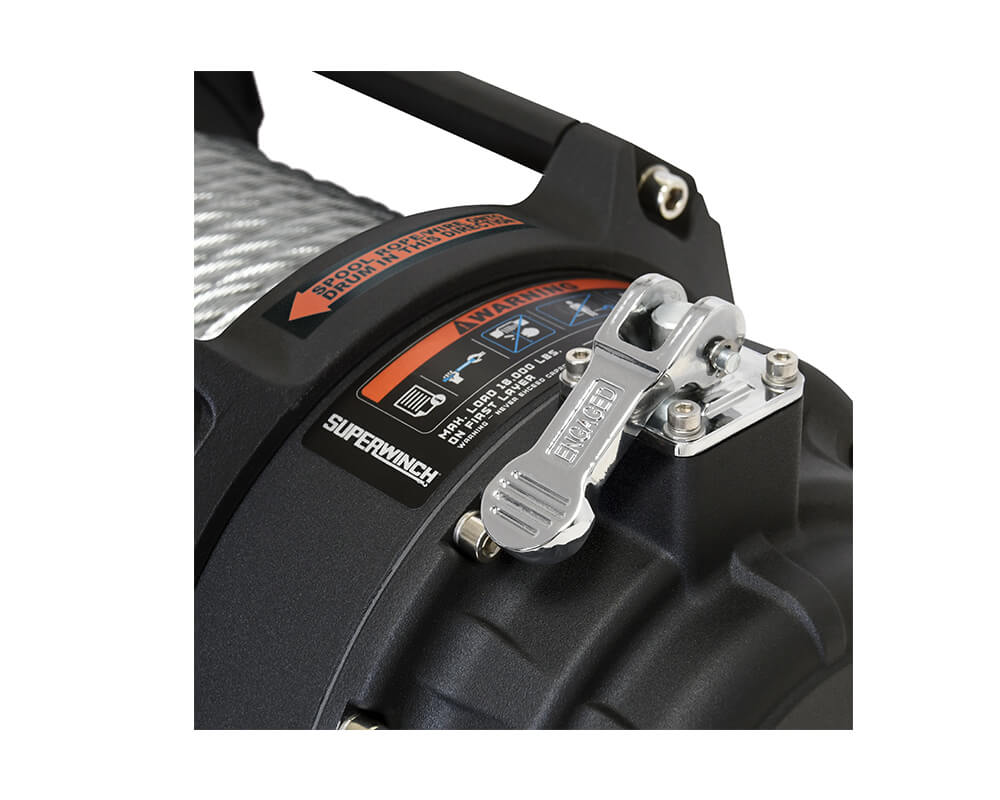

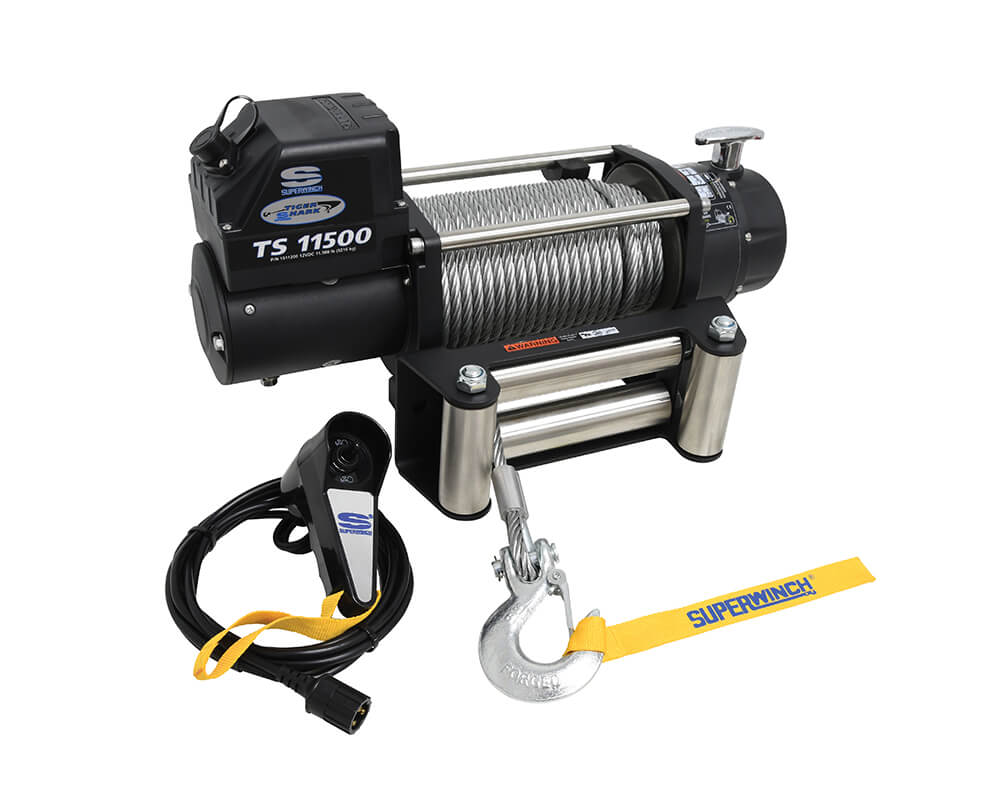

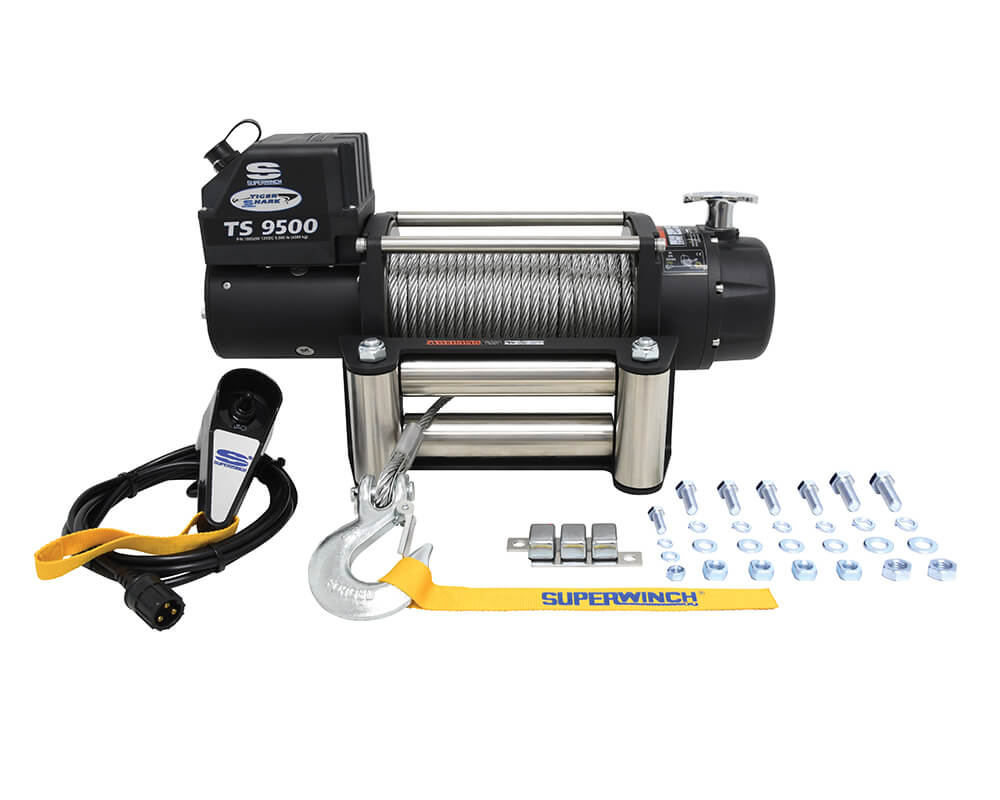

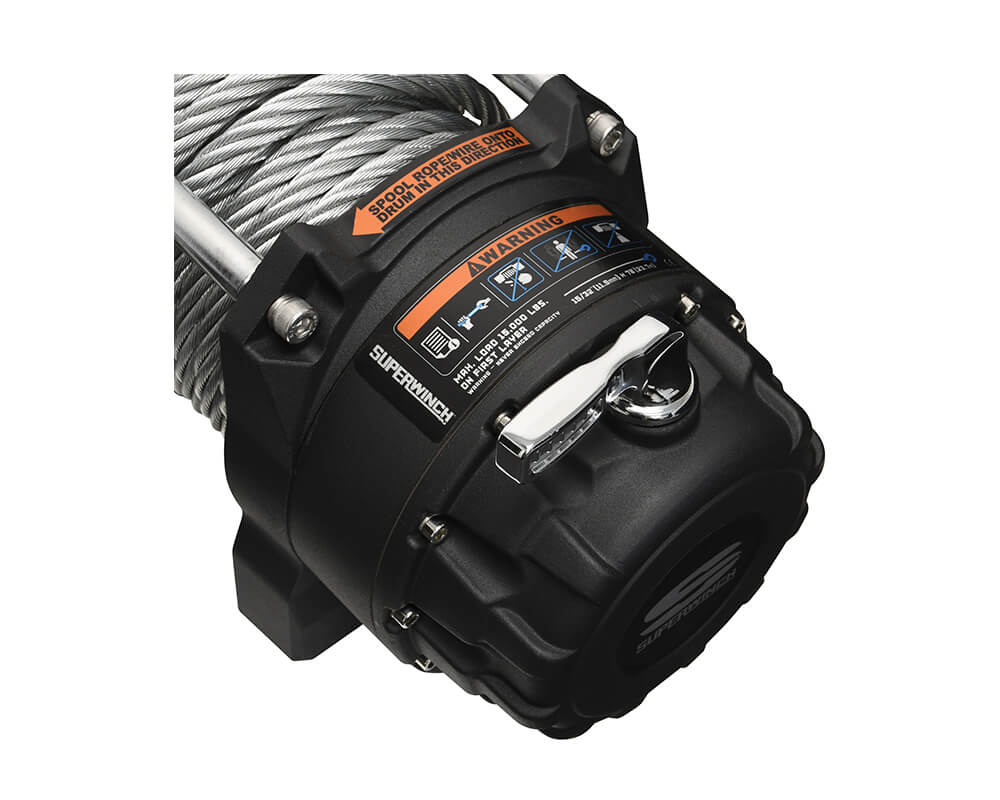

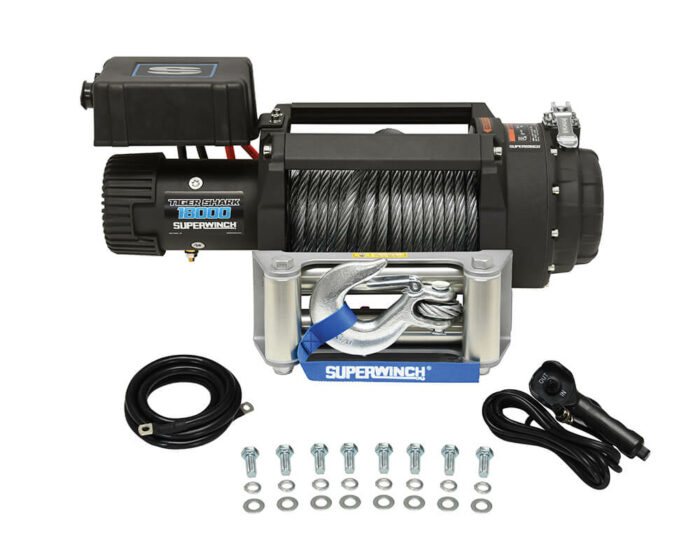

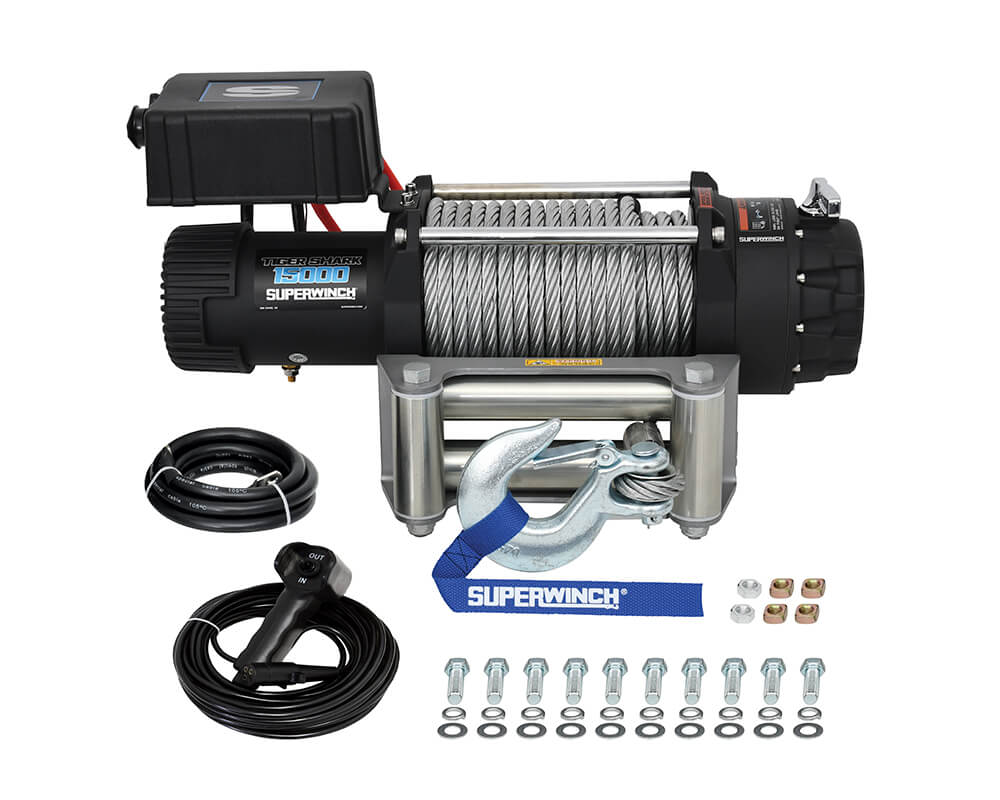

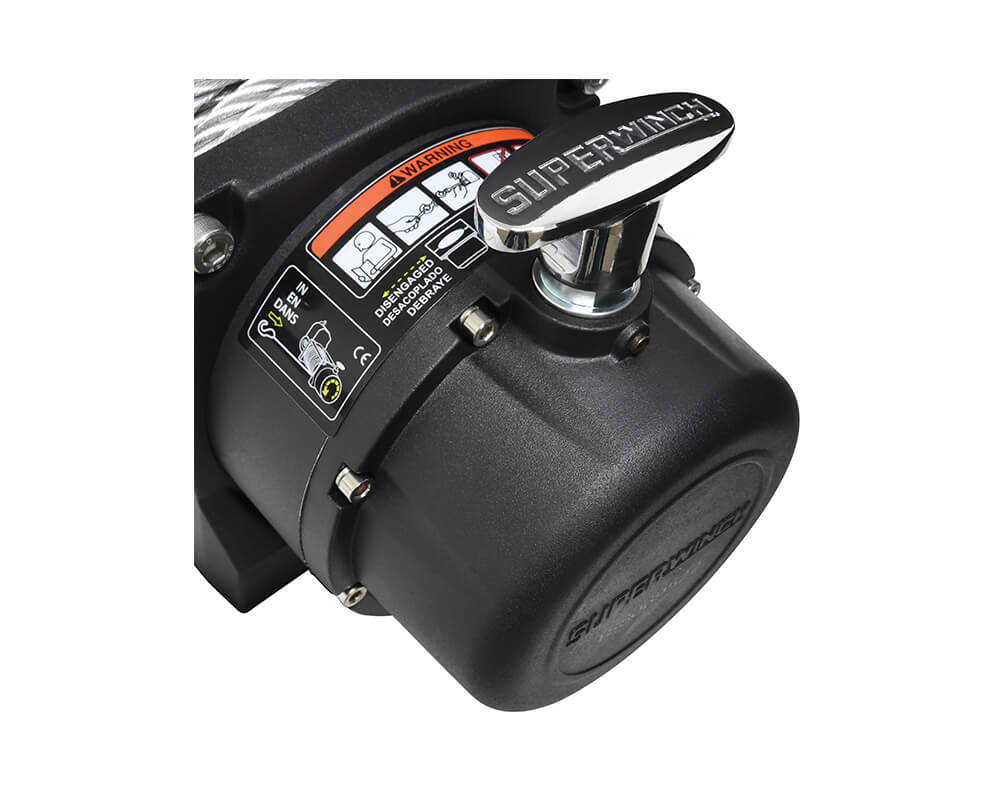

A wired remote control is included as standard, and you have the option to choose between a steel cable or synthetic winch rope. Additionally, the Superwinch Tiger Shark features a reliable and easy-to-operate freespool button. The winch is also protected by a black finish to provide better weather resistance.

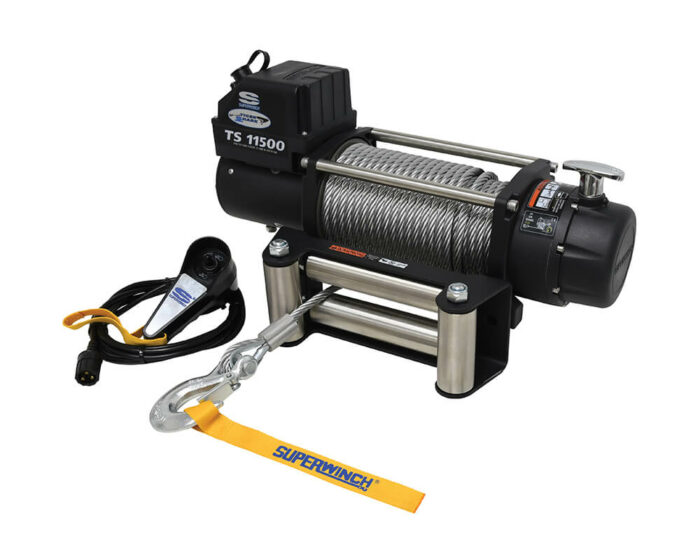

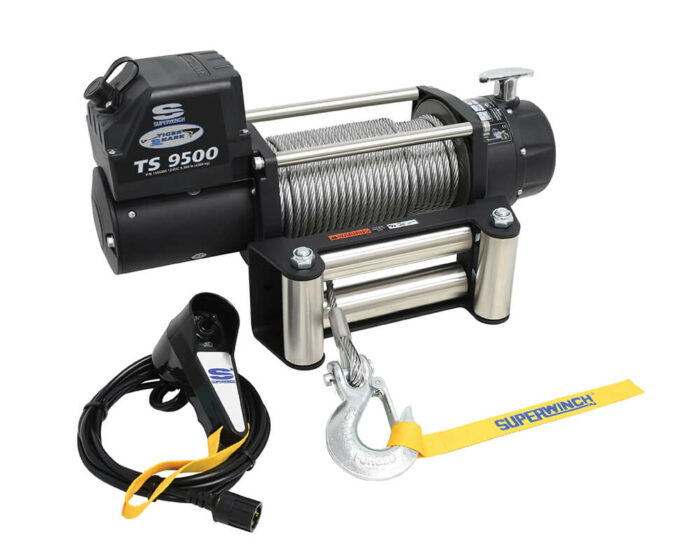

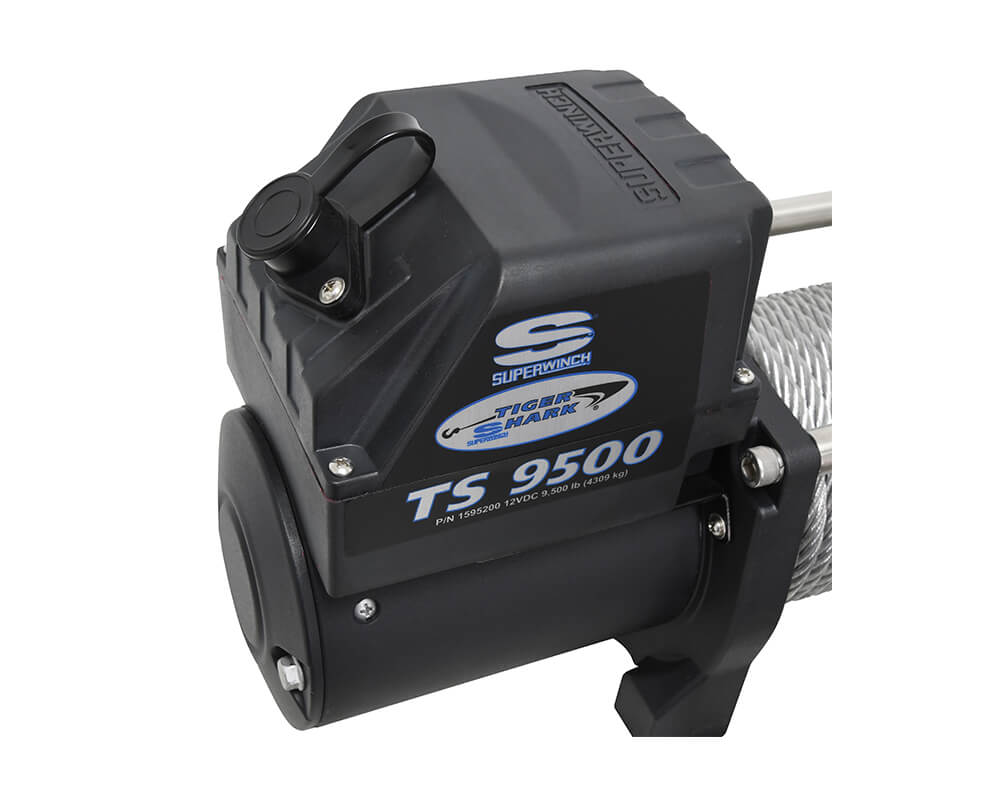

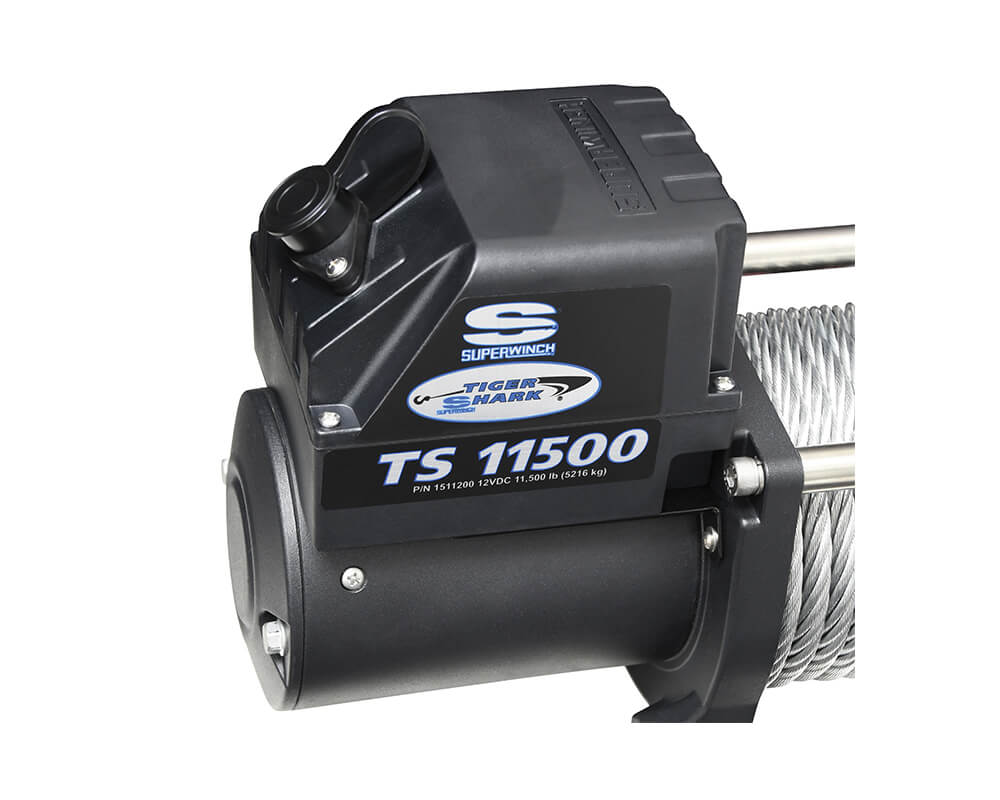

| Specifications | TS 9500 | TS 11500 | TS 15000 | TS 18000 |
|---|---|---|---|---|
| Part number | Superwinch 1595200 | Superwinch 1511200 | Superwinch 1515000 | Superwinch 1518000 |
| Rated Line Pull | 4309kg | 5216kg | 6804kg | 8165kg |
| Motor | 12V DC | 12V DC | 12V DC | 12V DC |
| Gear | 3-Stage Planetary | 3-Stage Planetary | 3-Stage Planetary | 3-Stage Planetary |
| Brake | Mechanical | Mechanical | Conical | Conical |
| Remote | Wired (wireless optional) | Wired (wireless optional) | Wired (wireless optional) | Wired (wireless optional) |

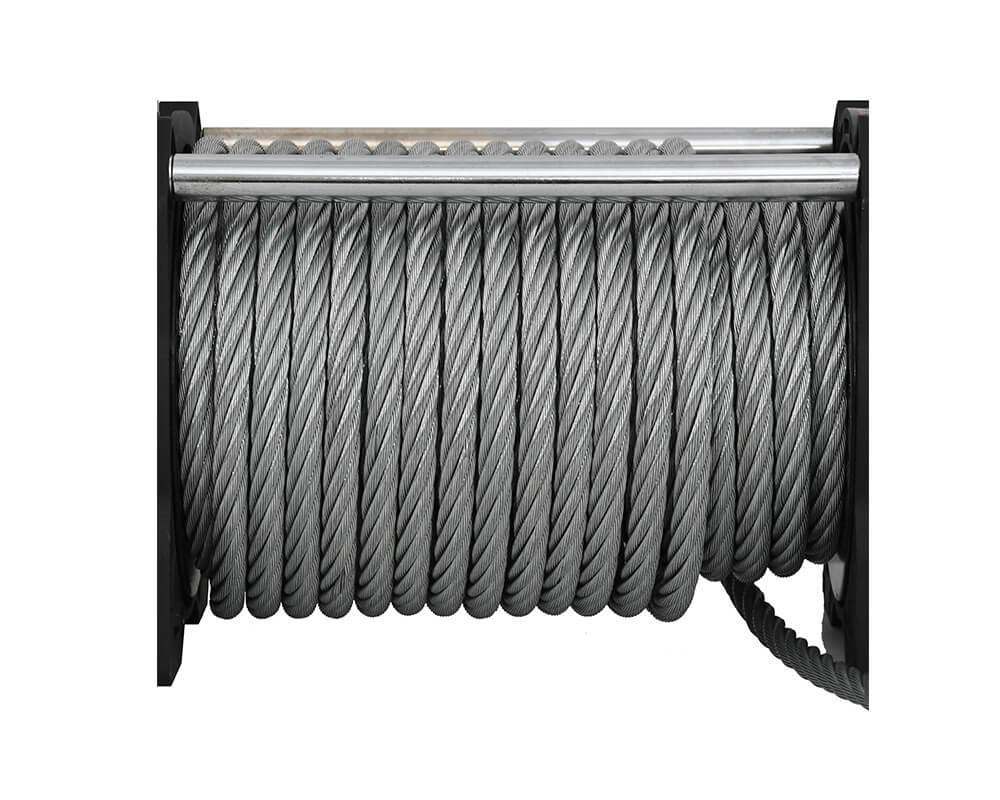

| Wire cable | ø8.3mm x 29m | ø9.5mm x 25.6m | ø11.5mm x 25m | ø11.5mm x 26m |
| Fairlead | Roller (⊗254mm) | Roller (⊗254mm) | Roller (⊗254mm) | Roller (⊗254mm) |
| Measurements LxWxH | 615.2mm x 157.5mm x 278.2mm | 615.2mm x 157.5mm x 278.2mm | 610mm x 249mm x 198mm | 618mm x 290mm x 216mm |
| Bolt pattern LxW | 254mm x 114.3mm | 254mm x 114.3mm | 254mm x 114.3mm | 254mm x 114.3mm |
| Weight | 41kg | 42kg | 50kg | 60kg |
| Line Speed No load/Load | 5.7MPM / 1.2MPM | 5.7MPM / 0.6MPM | 6.0MPM / 0.9MPM | 19.7MPM / 3.8MPM |
| Amps No load/Load | 80AMP / 340AMP | 80AMP / 410AMP | 70AMP / 410AMP | 70AMP / 440AMP |
| Specifications |
| Part number |
| TS 9500 – Superwinch 1595200 |
| TS 11500 – Superwinch 1511200 |
| TS 15000 – Superwinch 1515000 |
| TS 18000 – Superwinch 1518000 |
| Rated Line Pull |
| TS 9500 – 4309kg |
| TS 11500 – 5216kg |
| TS 15000 – 6804kg |
| TS 18000 – 8165kg |
| Motor |
| 12v DC |
| Gear |
| 3-Stage Planetary |
| Brake |
| TS 9500/11500 – Mechanical |
| TS 15000/18000 – Conical |
| Remote |
| Wired (wireless optional) |
| Wire cable |
| TS 9500 – ø8.3mm x 29m |
| TS 11500 – ø9.5mm x 25.6m |
| TS 15000 – ø11.5mm x 25m |
| TS 18000 – ø11.5mm x 26m |
| Fairlead |
| Roller (⊗254mm) |
| Measurements LxWxH |
| TS 9500/11500 – 615.2mm x 157.5mm x 278.2mm |
| TS 15000 – 610mm x 249mm x 198mm |
| TS 18000 – 618mm x 290mm x 216mm |
| Bolt pattern LxW |
| 254mm x 114.3mm |
| Weight |
| TS 9500/11500 – 26.7kg |
| TS 15000 – 35kg |
| TS 18000 – 37kg |
| Line Speed No load/Load |
| TS 9500 – 5.7MPM / 1.2MPM |
| TS 11500 – 5.7MPM / 0.6MPM |
| TS 15000 – 6.0MPM / 0.9MPM |
| TS 18000 – 19.7MPM / 3.8MPM |
| Amps No load/Load |
| TS 9500 – 80AMP / 340AMP |
| TS 11500 – 80AMP / 410AMP |
| TS 15000 – 70AMP / 410AMP |
| TS 18000 – 70AMP / 440AMP |
Additional information
| Weight | 38 kg |
|---|---|
| Dimensions | 60 × 40 × 40 cm |
