- Often used as ATV winch and boat trailer winch
- Wireless control optional
- With all-metal construction
- IP67 rating
- Also available the Superwinch SP with synthetic rope
Superwinch SP – Wire cable
Price range: € 605,00 through € 740,52 incl. vat
In stock
Description

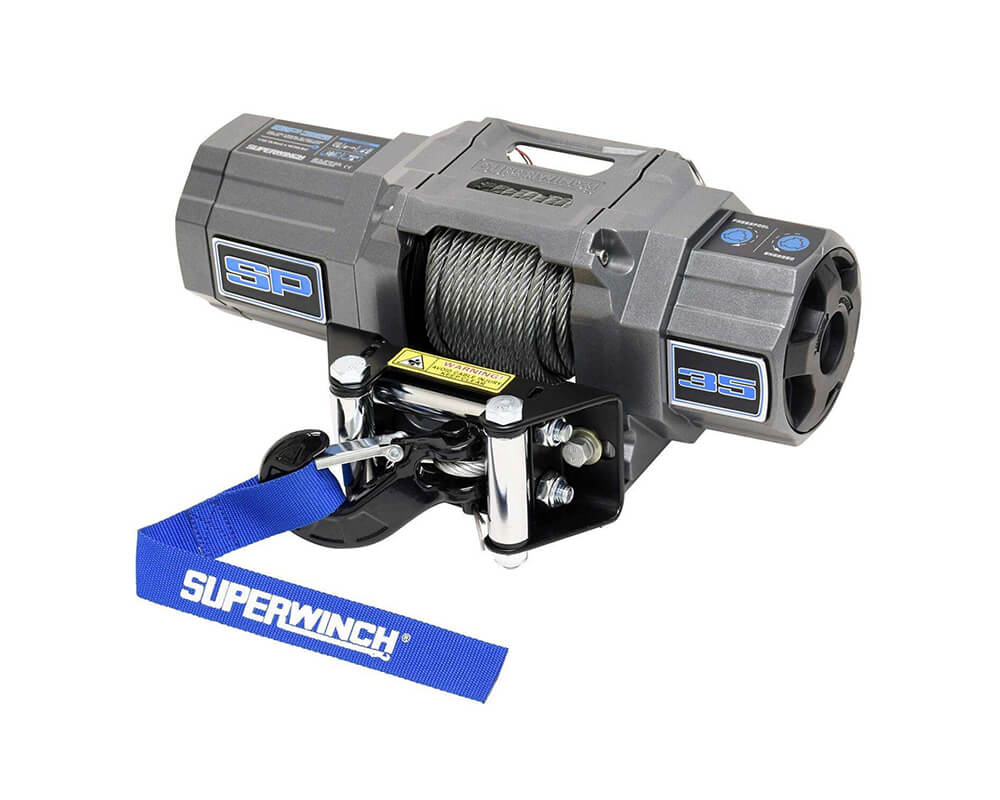

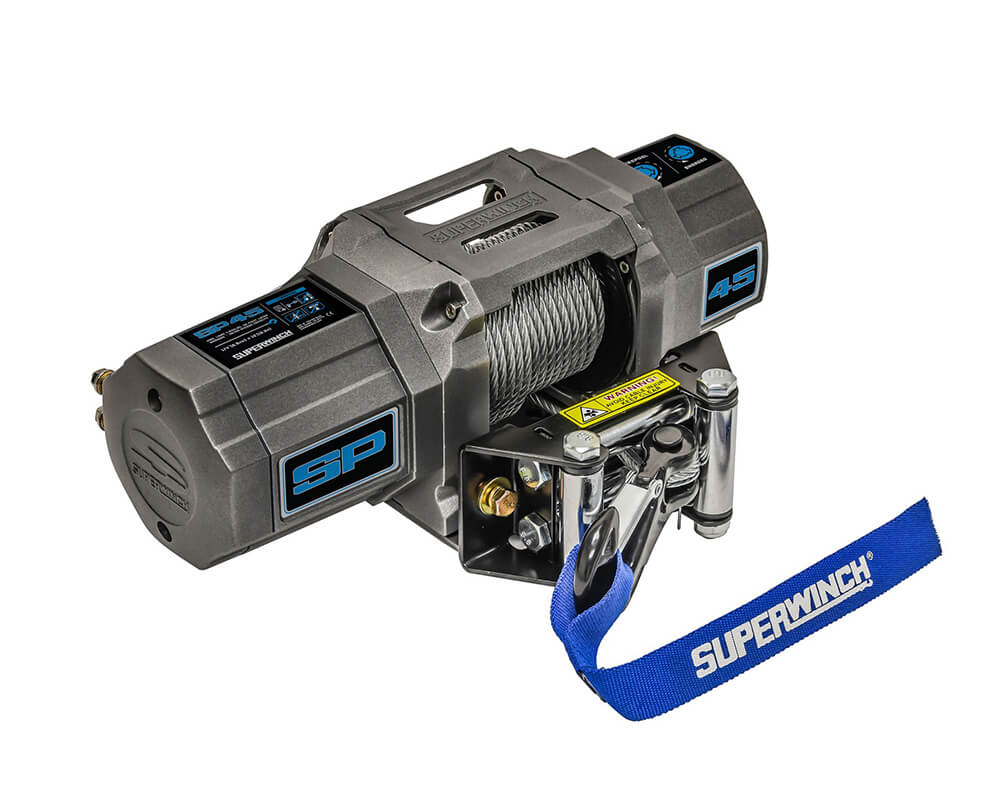

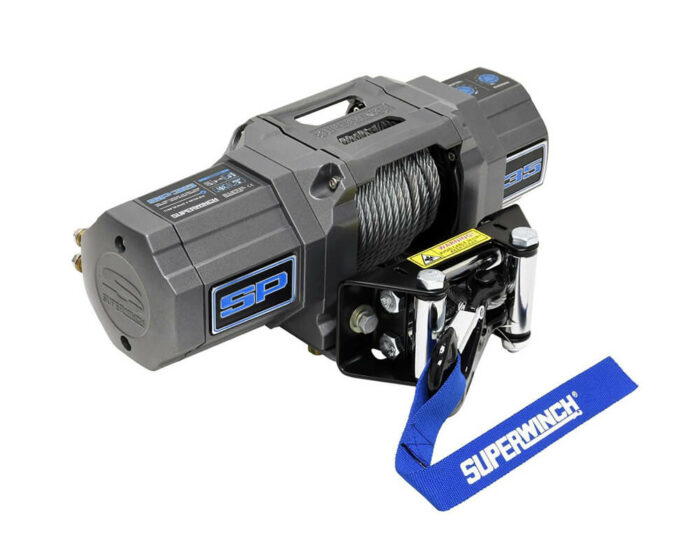

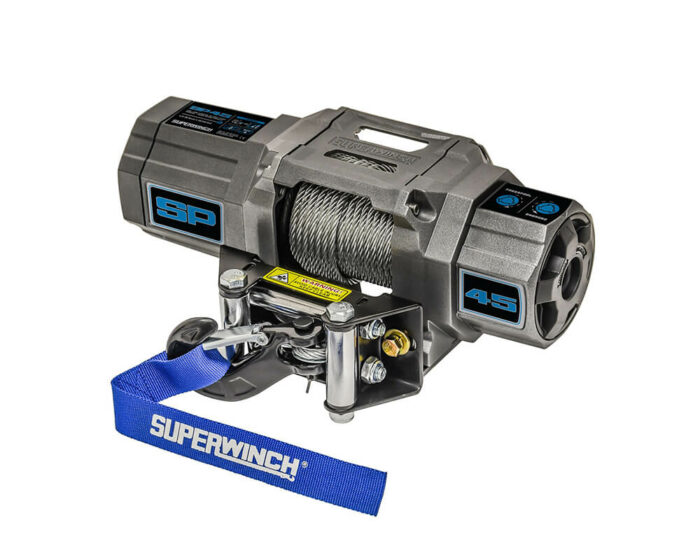

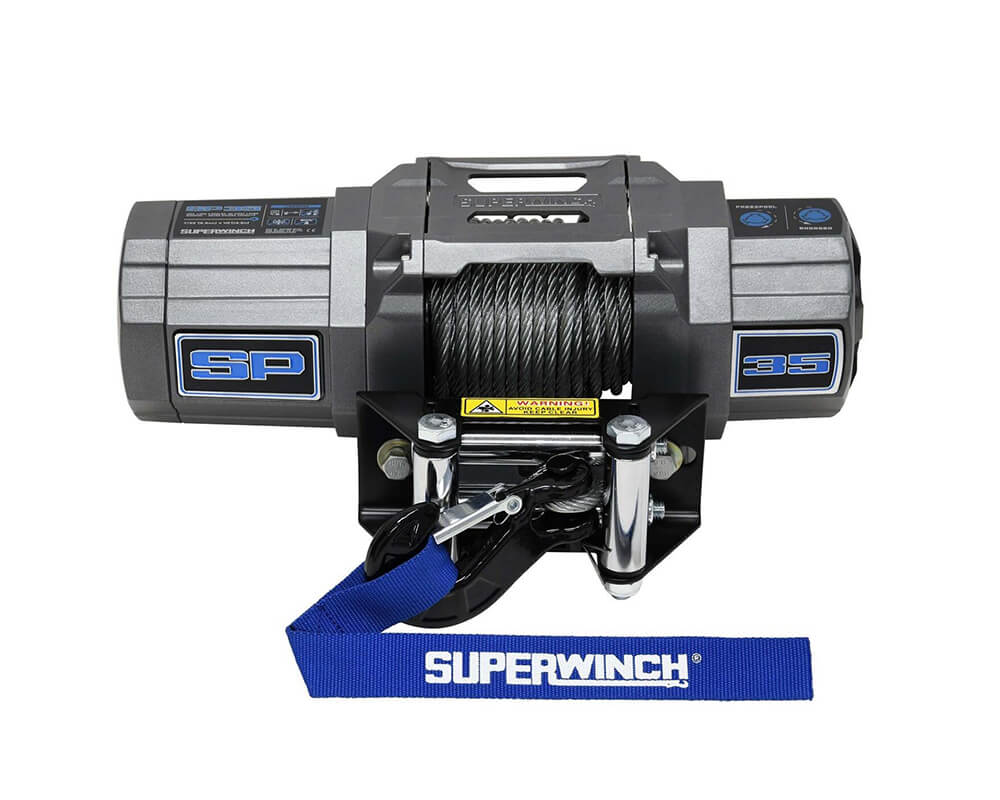

Superwinch SP – Wire Cable
“Unleash the power of adventure, count on it when you need it the most”
The Superwinch SP is a new winch in the field of ATV and UTV winches. It can also be used effectively as a small trailer winch.

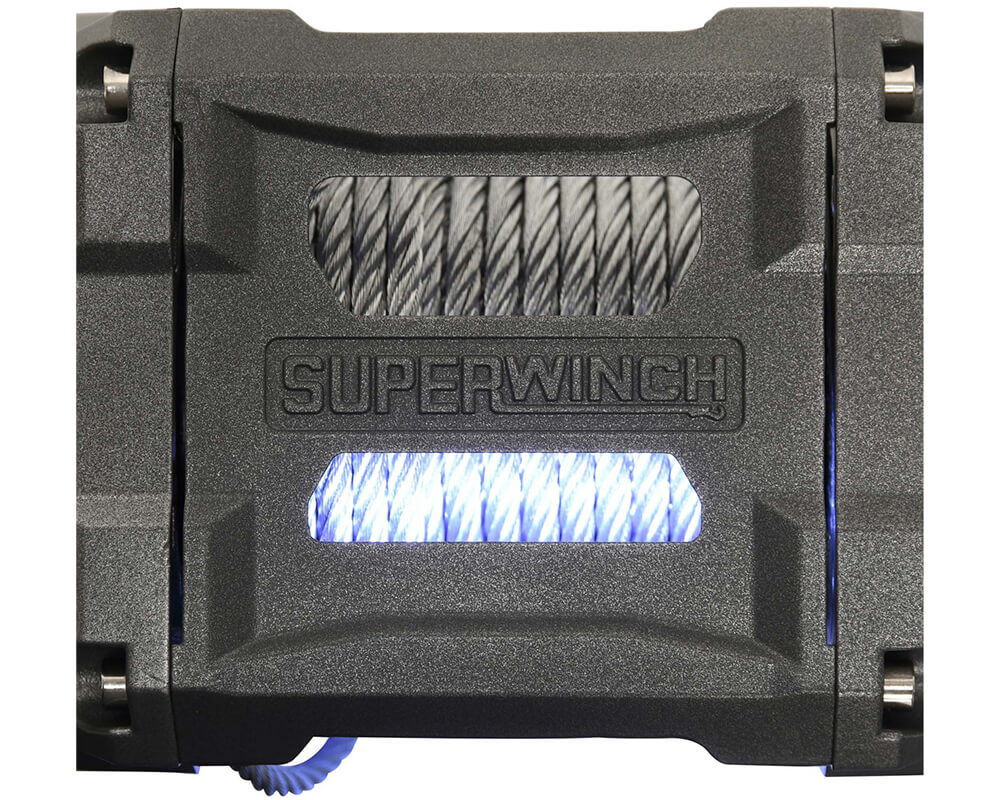

Equipped with more powerful motors, reinforced drum, and durable steel cable or synthetic winch rope. In short, lower amps and faster line speeds, available in capacities of 3500 and 4500 Lbs. Additionally, these winches are also equipped with lighting so you can see your drum well even in the dark.

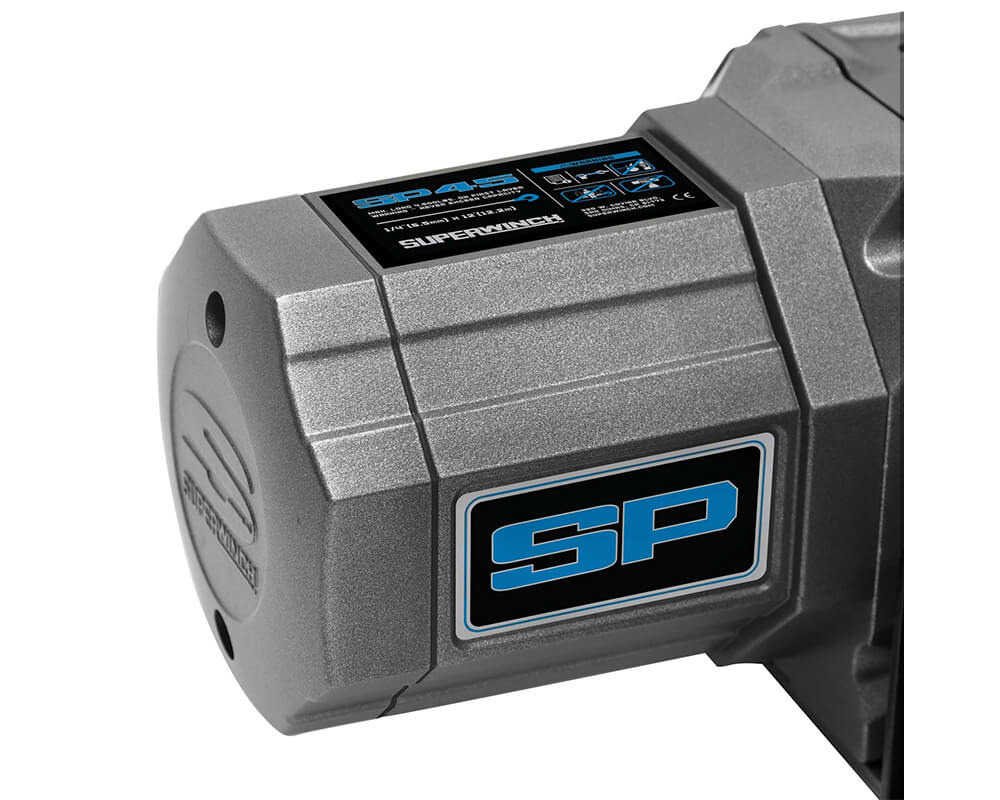

The new SP winches from Superwinch are specially designed to meet the rugged demands of ATV and UTV enthusiasts. Therefore, this electric winch has been redesigned and improved from the inside out. The housing is coated with a durable gray powder to protect it from all weather conditions.

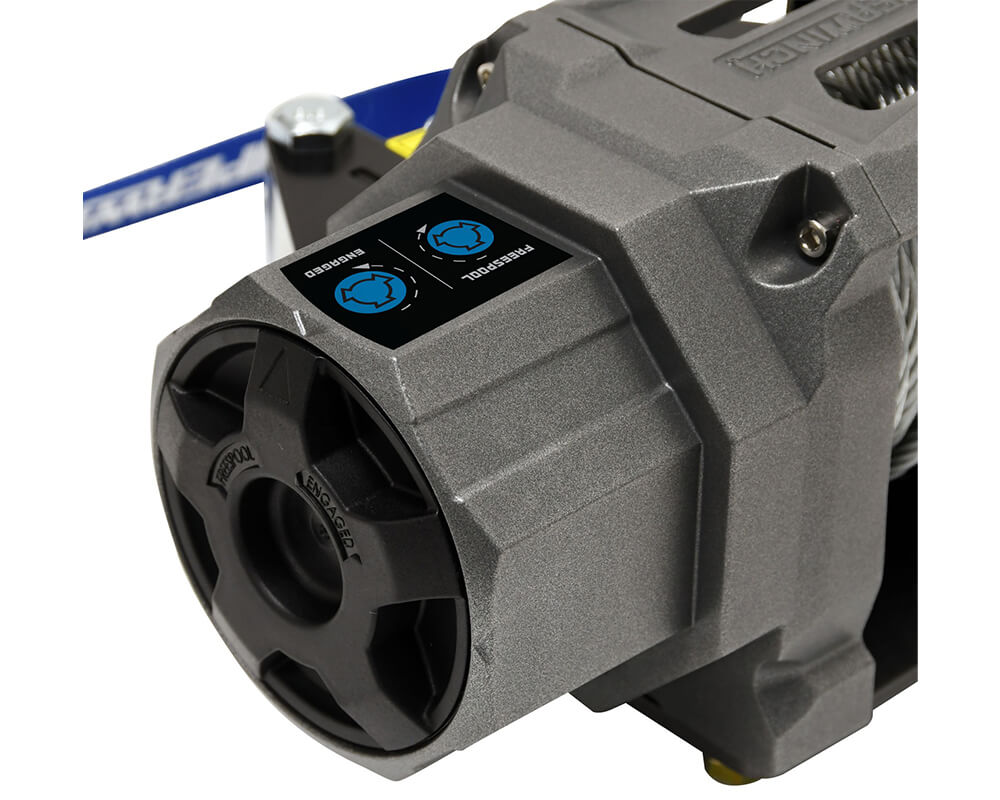

Additionally, each winch is equipped with a powerful motor, strong all-steel gears, and a steel drum for superior performance and durability. All SP Series winches come with a remotely mountable control. They also feature a sealed solenoid and fuse to ensure reliable operation. The free spool function is easy to operate with an ergonomic control button.

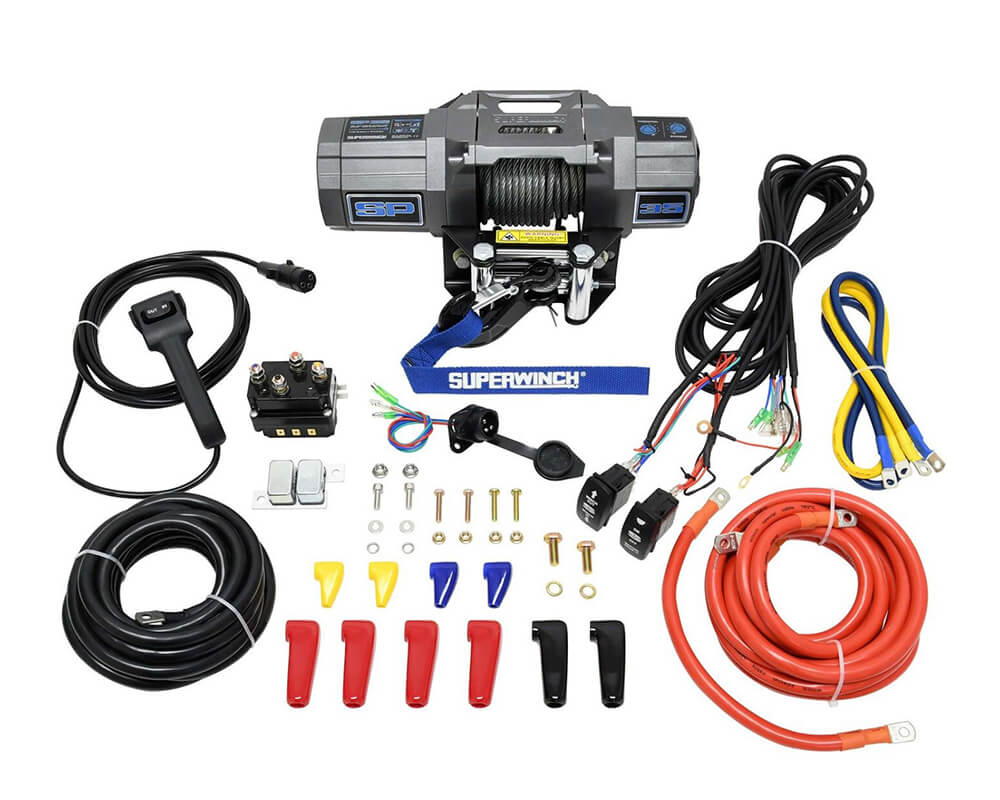

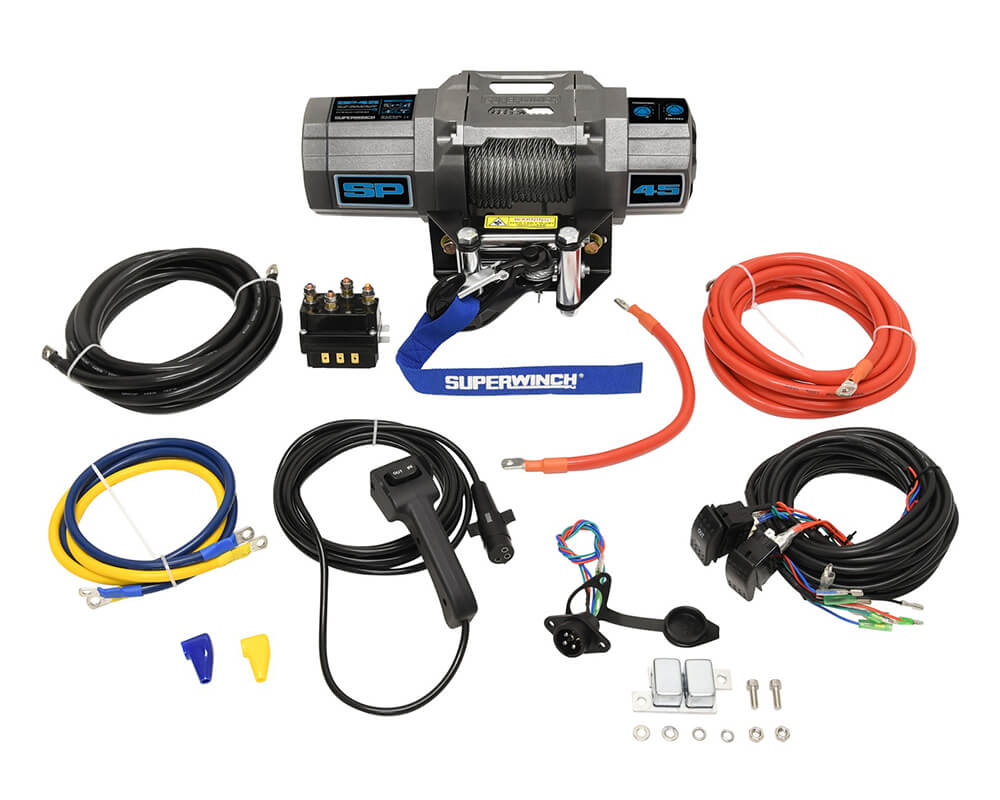

Each winch comes with a wired remote control and a steering control. These ensure reliable operation and maximum versatility. The Superwinch SP electric winch has an IP67 rating for water and dust protection, so they are always ready for action.
Specifications | SP 35 | SP 45 |
---|---|---|
Article Number | Superwinch 1511200 | Superwinch 1145240 |
Traction | 1588kg | 2041kg |
Motor | 12V DC | 12V DC |
Transmission | 3-Stage Planetary | 3-Stage Planetary |
Brake | Automatic | Automatic |
Remote Control | Steering control and manual control (wireless optional) | Steering control and manual control (wireless optional) |
Steel Cable | ø5.5mm x 12.2m | ø6.0mm x 12.2m |
Winch Window | Roller (⊗123.7mm) | Roller (⊗123.7mm) |
Dimensions LxWxH | 490mm x 280mm x 240mm | 3490mm x 280mm x 240mm |
Bolt Pattern LxW | 123.7mm x 76.2mm | 167.4mm x 76.2mm |
Weight | 15kg | 15kg |
Line Speed Unloaded/Loaded | 4.9MPM / 1.8MPM | 4.9MPM / 1.2MPM |
Ampere Unloaded/Loaded | 15AMP / 150AMP | 15AMP / 210AMP |
Specifications |
Article Number |
SP 35 – Superwinch 1511200 |
SP 45 – Superwinch 1145240 |
Traction |
SP 35 – 1588kg |
SP 45 – 2041kg |
Motor |
12v DC |
Transmission |
3-Phase Planetary |
Brake |
Automatic |
Remote Control |
Steering control and manual control (wireless optional) |
Steel Cable |
SP 35 – ø5.5mm x 12.2m |
SP 45 – ø6.0mm x 12.2m |
Winch Window |
Roller (⊗123.7mm) |
Dimensions LxWxH |
3490mm x 280mm x 240mm |
Bolt Pattern LxW |
123.7mm x 76.2mm |
Weight |
15kg |
Line Speed Unloaded/Loaded |
SP 35 – 4.9MPM / 1.8MPM |
SP 45 – 4.9MPM / 1.2MPM |
Ampere Unloaded/Loaded |
SP 35 – 15AMP / 150AMP |
SP 45 – 15AMP / 210AMP |
Additional information
Weight | 16 kg |
---|---|
Dimensions | 40 × 35 × 20 cm |
