- Often used as trailer winch and boattrailer winch
- Wireless control optional
- Safety tinted protective cover
- In 12V and 24V available
- Also available the Superwinch S with wire cable
Superwinch S – Synthetic rope
Price range: € 994,62 through € 1.096,26 incl. vat
In stock
Description

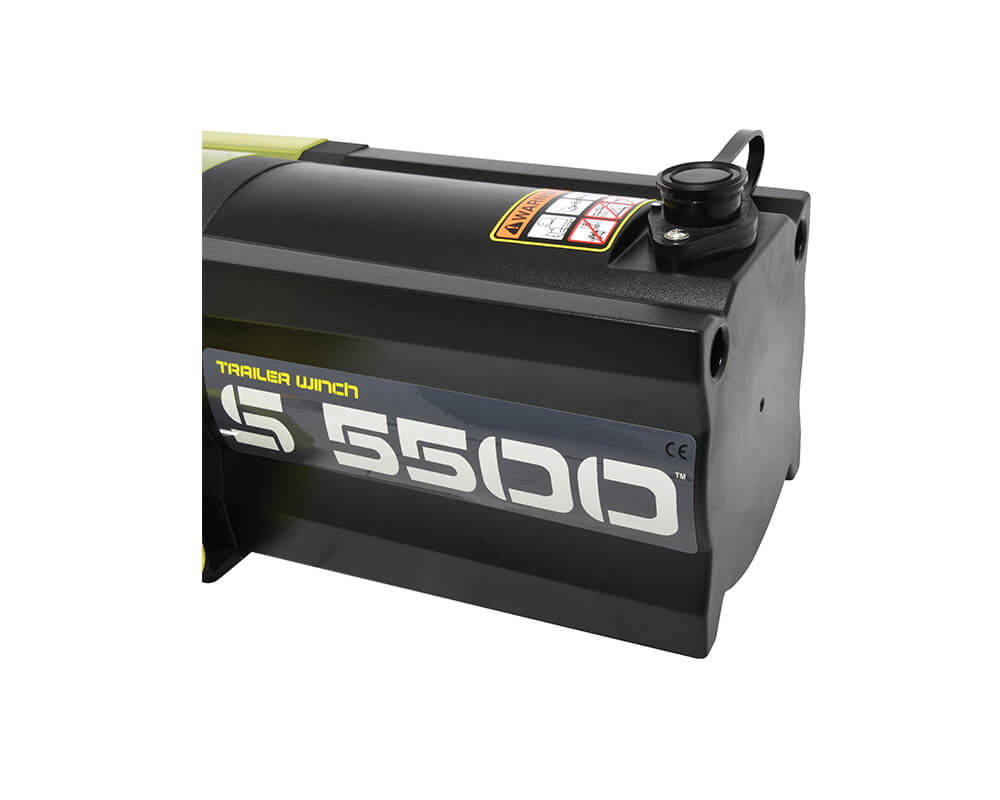

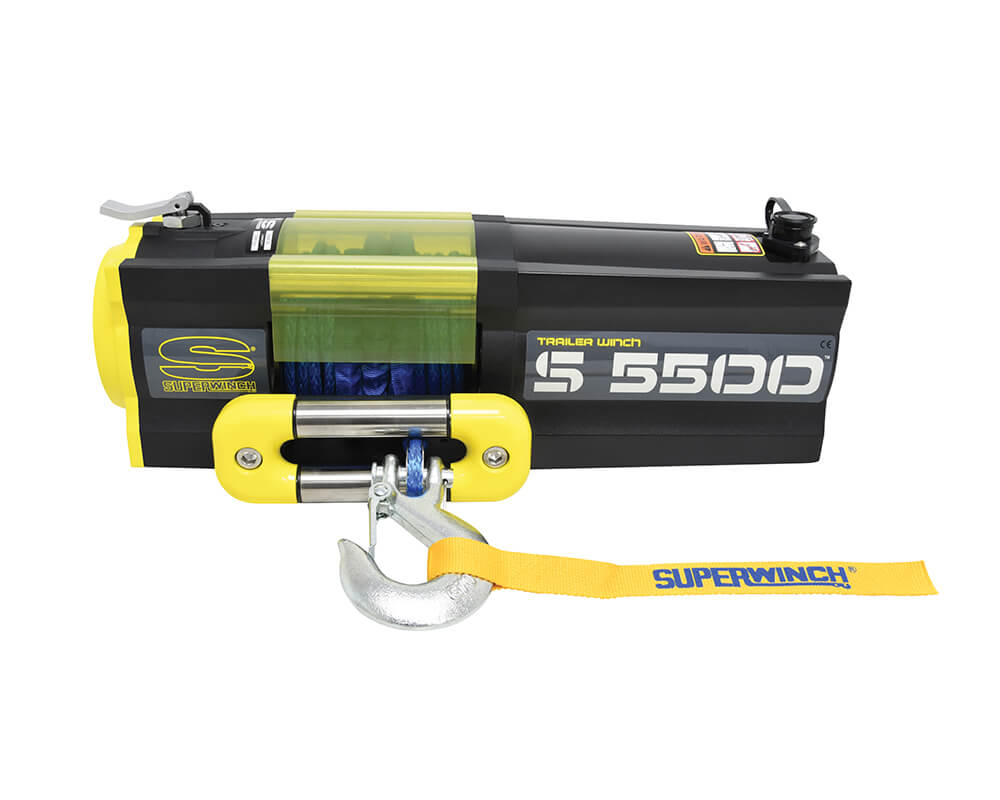

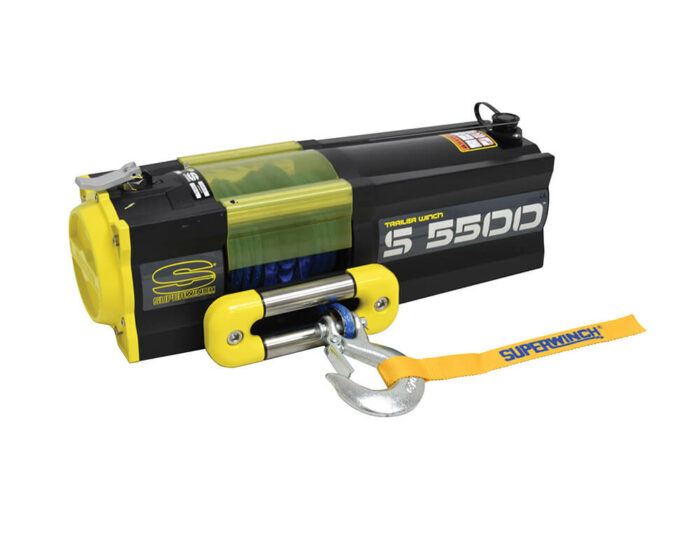

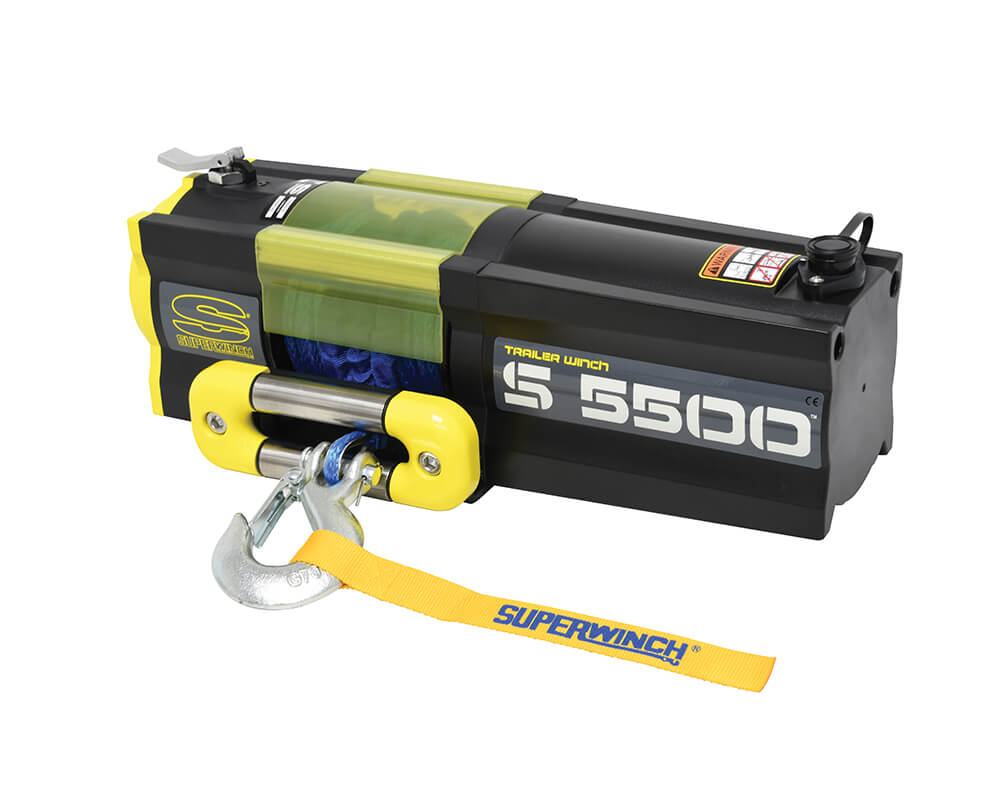

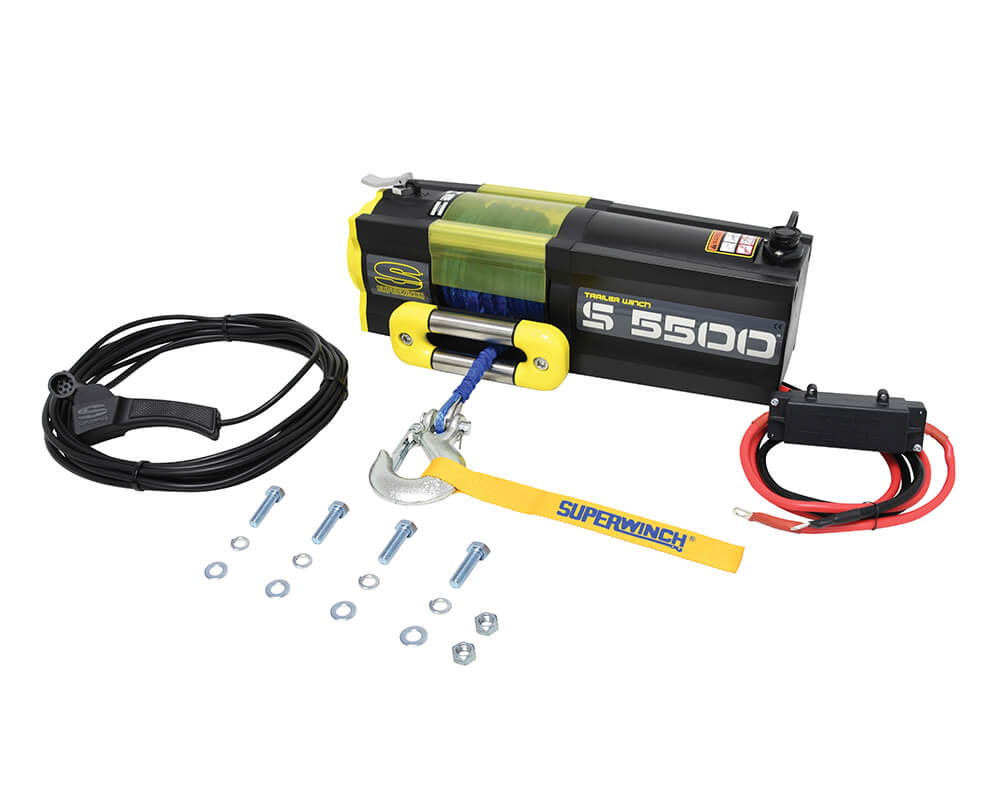

Superwinch S – Synthetic rope
“Most powerful trailer winch”

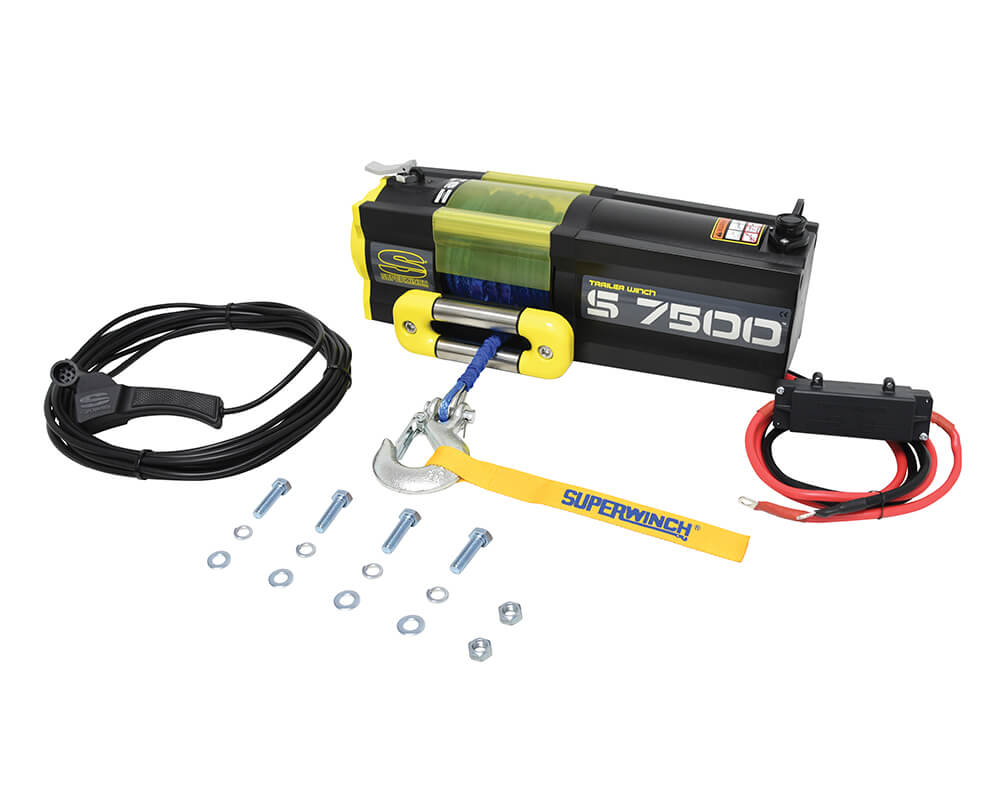

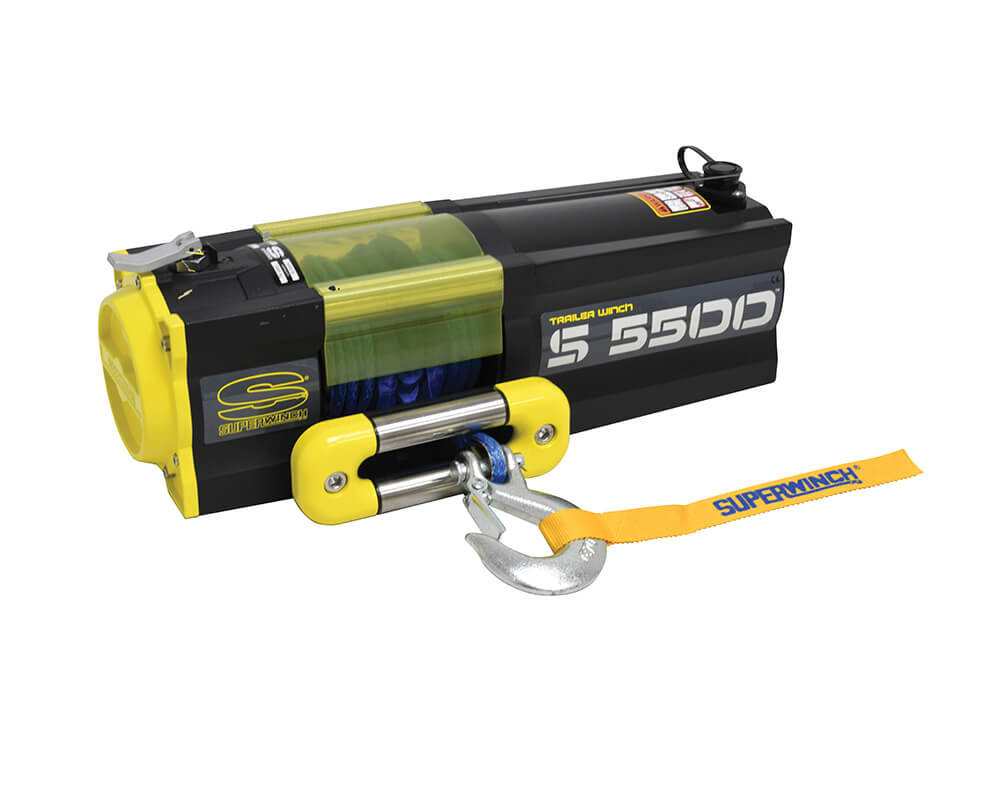

The Superwinch Winch S – Designed from the ground up, the new S Series includes smart features such as a foot-operated freewheel clutch and an instant-stop motor for precision winching of trailers. Available in wire or synthetic cable and in 12 or 24V.

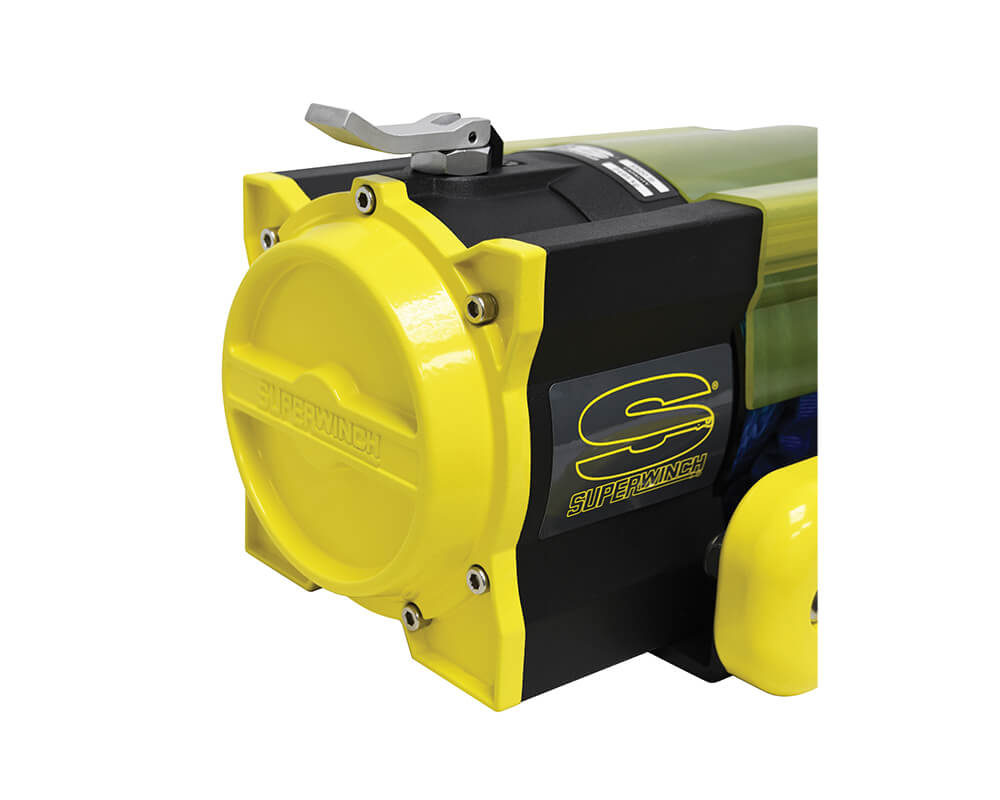

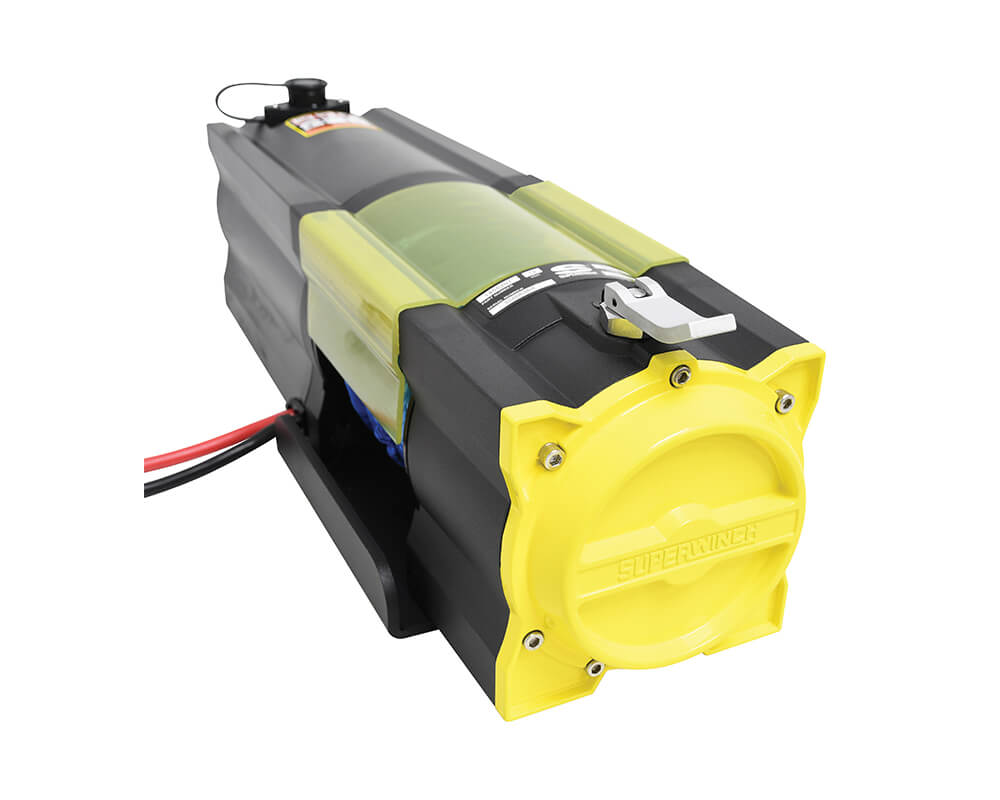

This trailer winch pulls with ease, powered by its permanent magnet motor and an all-steel 3-stage planetary gearbox. In addition, this Superwinch winch includes a safety tinted protective cover that protects the cable, drum and drivers fingers. The machined aluminum free-spool lever can also be easily operated by foot.
| Specifications | S 5500-S | S 7500-S |
|---|---|---|
| Part number | Superwinch 1455201 (12V) Superwinch 1455301 (24V) |
Superwinch 1475201 (12V) Superwinch 1475301 (24V) |
| Rated Line Pull | 2495kg | 3402kg |
| Motor | 12V DC / 24V DC | 12V DC / 24V DC |
| Gear | 3-Stage Planetary | 3-Stage Planetary |
| Brake | Mechanical (outside drum) | Mechanical (outside drum) |

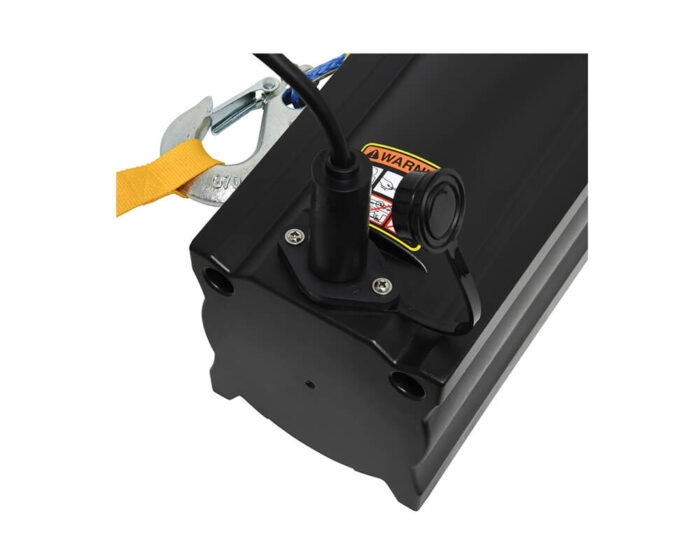

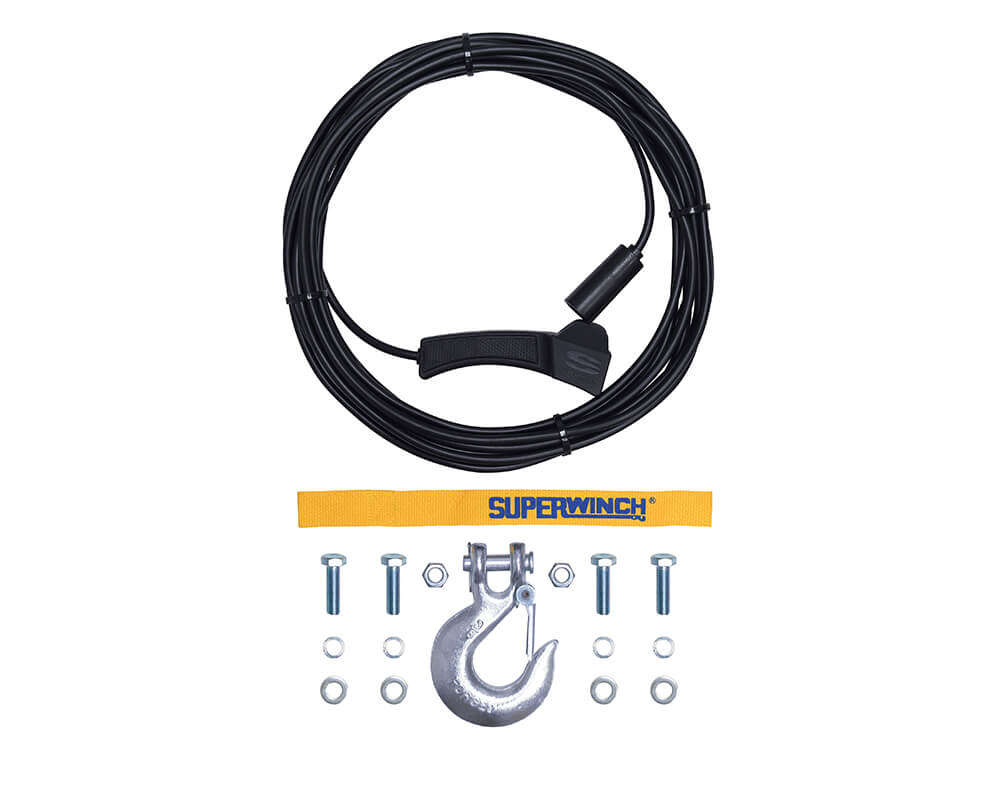

| Remote | Wired (wireless optional) | Wired (wireless optional) |

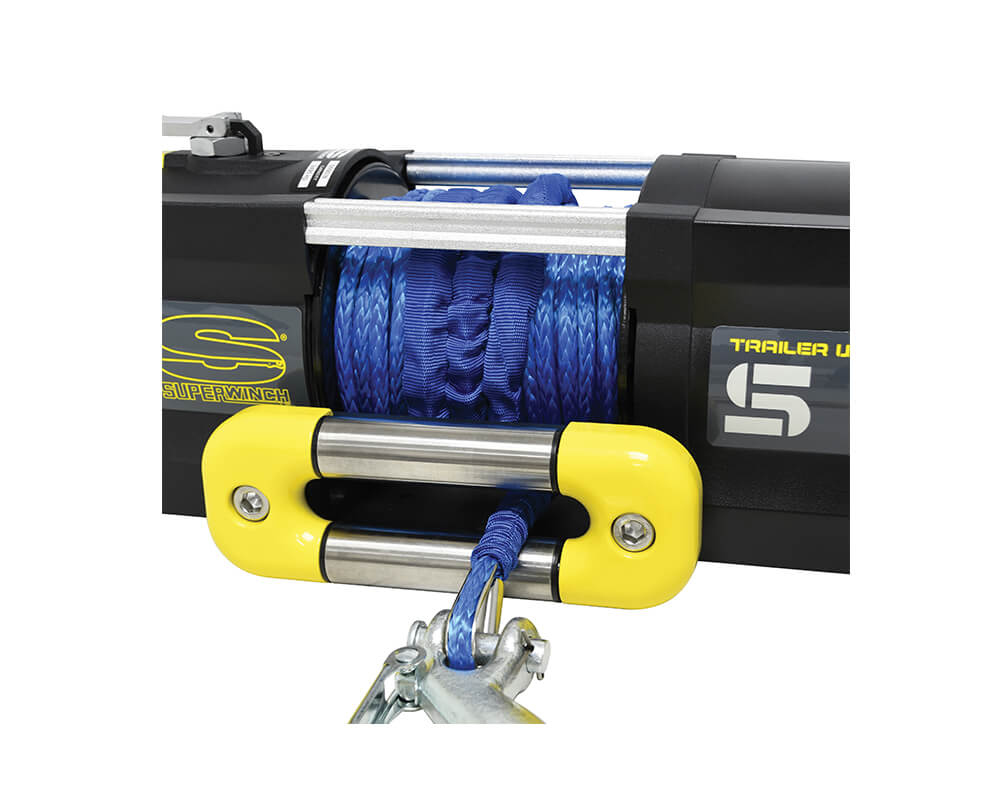

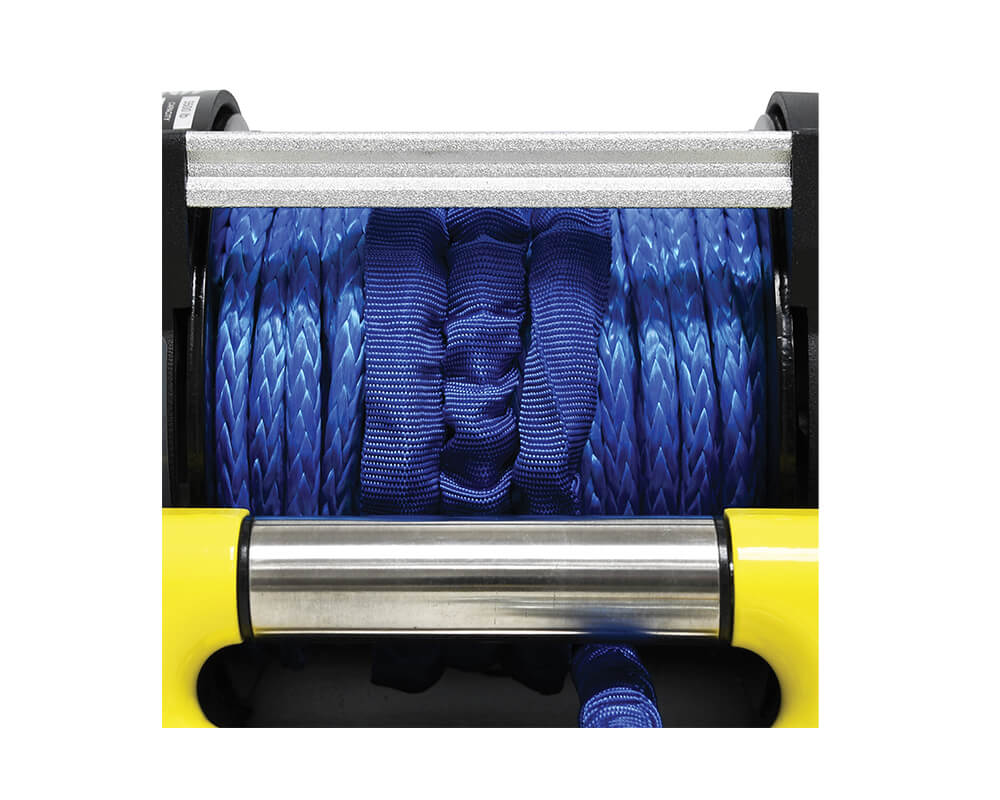

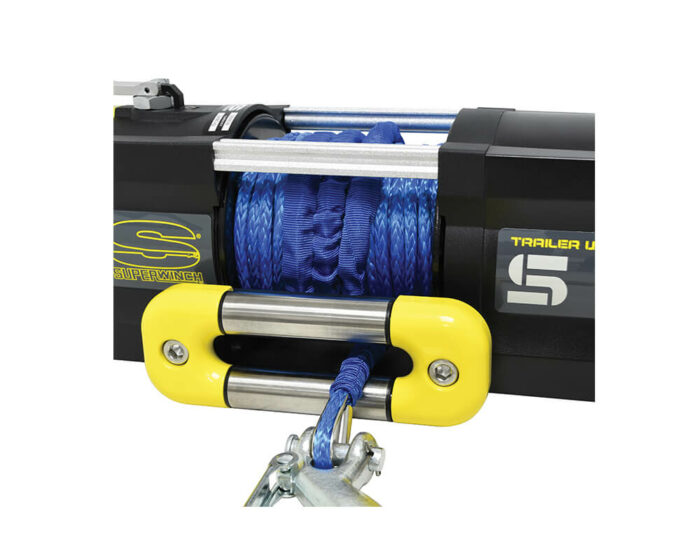

| Synthetic rope | ø6.35mm x 12.2m | ø6.35mm x 12.2m |
| Fairlead | Roller Hawse (⊗152mm) | Roller Hawse (⊗152mm) |
| Measurements LxWxH | 485mm x 167mm x 208mm | 485mm x 167mm x 208mm |
| Bolt pattern LxW | 152mm x 114mm | 152mm x 114mm |
| Weight | 19kg | 19kg |
| Line Speed No load/Load | 7.3MPM / 1.5MPM | 5MPM / 1.1MPM |
| Amps No load/Load | 75AMP / 340AMP | 80AMP / 335AMP |
| Specifications |
| Part number |
| S 5500 – Superwinch 1455201 |
| S 5500 – Superwinch 1455301 |
| S 7500 – Superwinch 1475201 |
| S 7500 – Superwinch 1475301 |
| Rated Line Pull |
| S 5500 – 2495kg |
| S 7500 – 3402kg |
| Motor |
| 12v DC / 24V DC |
| Gear |
| 3-Stage Planetary |
| Brake |
| Mechanical (outside drum) |
| Remote |
| Wired (wireless optional) |
| Synthetic rope |
| ø6.35mm x 12.2m |
| Fairlead |
| Roller Hawse (⊗152mm) |
| Measurements LxWxH |
| 485mm x 167mm x 208mm |
| Bolt pattern LxW |
| 152mm x 114mm |
| Weight |
| 19kg |
| Line Speed No load/Load |
| S 5500 – 7.3MPM / 1.5MPM |
| S 7500 – 5MPM / 1.1MPM |
| Amps No load/Load |
| S 5500 – 75AMP / 340AMP |
| S 7500 – 80AMP / 335AMP |
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 50 × 50 × 40 cm |
